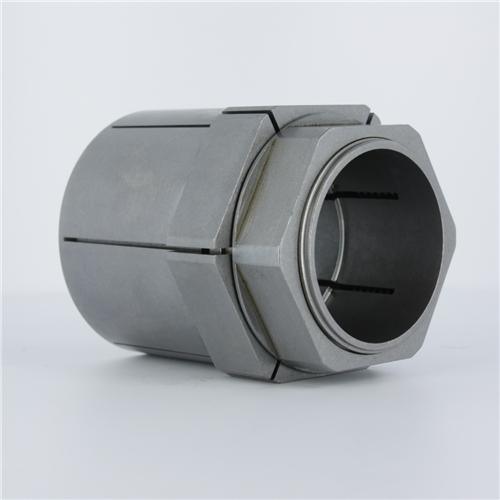

6202586UP by Fenner Drives | Trantorque GT | 2-3/4" | Steel
Fenner Drives - Power Transmission - Keyless Locking Devices - Trantorque® GT - Steel - Inch
6202586UP by Fenner Drives | Trantorque GT | 2-3/4" | Steel
Sale price$923.84
Product Data:
Brand:
Series:
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|
SPECIFICATIONS
| Series: | N/A | Torque Transmission: | N/A |
|---|---|---|---|
| Axial Movement: | N/A | Compliancy: | N/A |
| Component Bore Diameter: | N/A | Hub Pressure: | N/A |
| Installation Torque: | N/A | Internal/ External: | N/A |
| Material: | Steel | Metric/Inch: | Inch |
| Releasing/ Locking: | N/A | Self-Centering: | N/A |
| Shaft Diameter: | N/A | Taper: | N/A |
| Thrust: | N/A |
| Part Number | d | D | L | L1 | Wrench Size | B | B1 | Ma |
Mt Max. Transmitted |
Th Max. Transmitted |
Ph | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel | (inch) | (inch) | (inch) | (inch) |
A (inch) |
A1 (inch) |
(inch) | (inch) |
Install Torque (ft lb) |
Torque (ft lb) |
Thrust (lbs) |
Hub Pressure (psi) |
| 6202120UP | 5/8" | 1-1/2" | 3/4" | 1-1/2" | 1-1/4" | 1-1/2" | 5/16" | 5/16" | 100 ft lb | 153 ft lb | 5857 lbs | 13347 PSI |
| 6202140UP | 11/16" | 1-1/2" | 3/4" | 1-1/2" | 1-1/4" | 1-1/2" | 5/16" | 5/16" | 100 ft lb | 168 ft lb | 5857 lbs | 13347 PSI |
| 6202160UP | 3/4" | 1-1/2" | 3/4" | 1-1/2" | 1-1/4" | 1-1/2" | 5/16" | 5/16" | 100 ft lb | 183 ft lb | 5857 lbs | 13347 PSI |
| 6202190UP | 13/16" | 1-3/4" | 7/8" | 1-7/8" | 1-1/2" | 1-3/4" | 7/16" | 3/8" | 125 ft lb | 207 ft lb | 6110 lbs | 9336 PSI |
| 6202200UP | 7/8" | 1-3/4" | 7/8" | 1-7/8" | 1-1/2" | 1-3/4" | 7/16" | 3/8" | 125 ft lb | 223 ft lb | 6110 lbs | 9336 PSI |
| 6202220UP | 15/16" | 1-3/4" | 7/8" | 1-7/8" | 1-1/2" | 1-3/4" | 7/16" | 3/8" | 125 ft lb | 239 ft lb | 6110 lbs | 9336 PSI |
| 6202240UP | 1" | 1-3/4" | 7/8" | 1-7/8" | 1-1/2" | 1-3/4" | 7/16" | 3/8" | 125 ft lb | 255 ft lb | 6110 lbs | 9336 PSI |
| 6202270UP | 1-1/16" | 2" | 1" | 2-1/4" | 1-3/4" | 2" | 1/2" | 9/16" | 167 ft lb | 311 ft lb | 7014 lbs | 8313 PSI |
| 6202280UP | 1-1/8" | 2" | 1" | 2-1/4" | 1-3/4" | 2" | 1/2" | 9/16" | 167 ft lb | 329 ft lb | 7014 lbs | 8313 PSI |
| 6202300UP | 1-3/16" | 2" | 1" | 2-1/4" | 1-3/4" | 2" | 1/2" | 9/16" | 167 ft lb | 347 ft lb | 7014 lbs | 8313 PSI |
| 6202320UP | 1-1/4" | 2" | 1" | 2-1/4" | 1-3/4" | 2" | 1/2" | 9/16" | 167 ft lb | 365 ft lb | 7014 lbs | 8313 PSI |
| 6202350UP | 1-5/16" | 2-3/8" | 1-1/2" | 2-3/4" | 2" | 2-3/8" | 9/16" | 1/2" | 192 ft lb | 384 ft lb | 7019 lbs | 4842 PSI |
| 6202360UP | 1-3/8" | 2-3/8" | 1-1/2" | 2-3/4" | 2" | 2-3/8" | 9/16" | 1/2" | 192 ft lb | 402 ft lb | 7019 lbs | 4842 PSI |
| 6202380UP | 1-7/16" | 2-3/8" | 1-1/2" | 2-3/4" | 2" | 2-3/8" | 9/16" | 1/2" | 192 ft lb | 421 ft lb | 7019 lbs | 4842 PSI |
| 6202400UP | 1-1/2" | 2-3/8" | 1-1/2" | 2-3/4" | 2" | 2-3/8" | 9/16" | 1/2" | 192 ft lb | 439 ft lb | 7019 lbs | 4842 PSI |
| 6202430UP | 1-9/16" | 2-5/8" | 1-11/16" | 3-1/8" | 2-1/4" | 2-5/8" | 9/16" | 11/16" | 234 ft lb | 499 ft lb | 7019 lbs | 4842 PSI |
| 6202440UP | 1-5/8" | 2-5/8" | 1-11/16" | 3-1/8" | 2-1/4" | 2-5/8" | 9/16" | 11/16" | 234 ft lb | 519 ft lb | 7019 lbs | 4842 PSI |
| 6202460UP | 1-11/16" | 2-5/8" | 1-11/16" | 3-1/8" | 2-1/4" | 2-5/8" | 9/16" | 11/16" | 234 ft lb | 539 ft lb | 7019 lbs | 4842 PSI |
| 6202480UP | 1-3/4" | 2-5/8" | 1-11/16" | 3-1/8" | 2-1/4" | 2-5/8" | 9/16" | 11/16" | 234 ft lb | 559 ft lb | 7019 lbs | 4842 PSI |
| 6202510UP | 1-13/16" | 2-7/8" | 2" | 3-9/16" | 2-1/2" | 2-7/8" | 5/8" | 3/4" | 409 ft lb | 913 ft lb | 12085 lbs | 5257 PSI |
| 6202520UP | 1-7/8" | 2-7/8" | 2" | 3-9/16" | 2-1/2" | 2-7/8" | 5/8" | 3/4" | 409 ft lb | 944 ft lb | 12085 lbs | 5257 PSI |
| 6202540UP | 1-15/16" | 2-7/8" | 2" | 3-9/16" | 2-1/2" | 2-7/8" | 5/8" | 3/4" | 409 ft lb | 976 ft lb | 12085 lbs | 5257 PSI |
| 6202560UP | 2" | 2-7/8" | 2" | 3-9/16" | 2-1/2" | 2-7/8" | 5/8" | 3/4" | 409 ft lb | 1007 ft lb | 12085 lbs | 5257 PSI |
| 6202562UP | 2-1/16" | 3-1/8" | 2-1/8" | 3-3/4" | 2-3/4" | 3-1/8" | 5/8" | 13/16" | 442 ft lb | 1013 ft lb | 11793 lbs | 4457 PSI |
| 6202564UP | 2-1/8" | 3-1/8" | 2-1/8" | 3-3/4" | 2-3/4" | 3-1/8" | 5/8" | 13/16" | 442 ft lb | 1044 ft lb | 11793 lbs | 4457 PSI |
| 6202566UP | 2-3/16" | 3-1/8" | 2-1/8" | 3-3/4" | 2-3/4" | 3-1/8" | 5/8" | 13/16" | 442 ft lb | 1075 ft lb | 11793 lbs | 4457 PSI |
| 6202568UP | 2-1/4" | 3-1/8" | 2-1/8" | 3-3/4" | 2-3/4" | 3-1/8" | 5/8" | 13/16" | 442 ft lb | 1106 ft lb | 11793 lbs | 4457 PSI |
| 6202570UP | 2-5/16" | 3-3/8" | 2-1/4" | 3-7/8" | 3" | 3-3/8" | 11/16" | 3/4" | 467 ft lb | 1101 ft lb | 11430 lbs | 3789 PSI |
| 6202572UP | 2-3/8" | 3-3/8" | 2-1/4" | 3-7/8" | 3" | 3-3/8" | 11/16" | 3/4" | 467 ft lb | 1131 ft lb | 11430 lbs | 3789 PSI |
| 6202574UP | 2-7/16" | 3-3/8" | 2-1/4" | 3-7/8" | 3" | 3-3/8" | 11/16" | 3/4" | 467 ft lb | 1161 ft lb | 11430 lbs | 3789 PSI |
| 6202576UP | 2-1/2" | 3-3/8" | 2-1/4" | 3-7/8" | 3" | 3-3/8" | 11/16" | 3/4" | 467 ft lb | 1191 ft lb | 11430 lbs | 3789 PSI |
| 6202580UP | 2-9/16" | 3-5/8" | 2-3/8" | 4-1/16" | 3-1/4" | 3-5/8" | 11/16" | 13/16" | 500 ft lb | 1207 ft lb | 11306 lbs | 3313 PSI |
| 6202582UP | 2-5/8" | 3-5/8" | 2-3/8" | 4-1/16" | 3-1/4" | 3-5/8" | 11/16" | 13/16" | 500 ft lb | 1237 ft lb | 11306 lbs | 3313 PSI |
| 6202584UP | 2-11/16" | 3-5/8" | 2-3/8" | 4-1/16" | 3-1/4" | 3-5/8" | 11/16" | 13/16" | 500 ft lb | 1266 ft lb | 11306 lbs | 3313 PSI |
| 6202586UP | 2-3/4" | 3-5/8" | 2-3/8" | 4-1/16" | 3-1/4" | 3-5/8" | 11/16" | 13/16" | 500 ft lb | 1295 ft lb | 11306 lbs | 3313 PSI |
| 6202590UP | 2-13/16" | 3-7/8" | 2-1/2" | 4-1/4" | 3-1/2" | 3-7/8" | 3/4" | 13/16" | 550 ft lb | 1354 ft lb | 11555 lbs | 3014 PSI |
| 6202592UP | 2-7/8" | 3-7/8" | 2-1/2" | 4-1/4" | 3-1/2" | 3-7/8" | 3/4" | 13/16" | 550 ft lb | 1384 ft lb | 11555 lbs | 3014 PSI |
| 6202594UP | 2-15/16" | 3-7/8" | 2-1/2" | 4-1/4" | 3-1/2" | 3-7/8" | 3/4" | 13/16" | 550 ft lb | 1414 ft lb | 11555 lbs | 3014 PSI |
| 6202596UP | 3" | 3-7/8" | 2-1/2" | 4-1/4" | 3-1/2" | 3-7/8" | 3/4" | 13/16" | 550 ft lb | 1444 ft lb | 11555 lbs | 3014 PSI |
NOTE: The data in the Mt Th and Ph is for a steel unit. To obtain data for other materials, use the multiplier provided below.
Multipliers:
Steel - 1.0
Electroless Nickel Plated Steel - 0.6
Thin Dense Chrome Coated Steel - 1.1
Stainless Steel - 0.3
