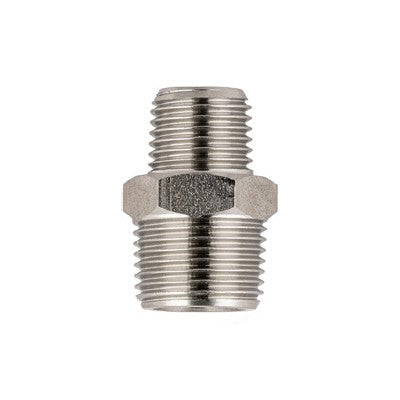

62020-3/8"-1/2 by AIGNEP | 60/62 Series | Reducing Nipple | Taper | 3/8" BSPT Male x 1/2" BSPT Male | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.90 |
| 40–79 | $16.18 |
| 80+ | $14.28 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Reducer Nipple - BSPT
Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

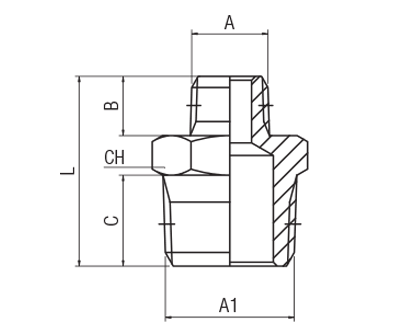

| Product Number | A BSPT | A1 BSPT | B | C | L | CH |
|---|---|---|---|---|---|---|
| 62020-1/8-1/4 | 1/8" | 1/4" | 7.5 mm | 11 mm | 23.5 mm | 14 mm |
| 62020-1/8-3/8 | 1/8" | 3/8" | 7.5 mm | 11.5 mm | 24 mm | 17 mm |
| 62020-1/4-3/8 | 1/4" | 3/8" | 11 mm | 11.5 mm | 27.5 mm | 17 mm |
| 62020-1/4-1/2 | 1/4" | 1/2" | 11 mm | 14 mm | 30.5 mm | 22 mm |
| 62020-3/8-1/2 | 3/8" | 1/2" | 11.5 mm | 14 mm | 31 mm | 22 mm |
| 62020-1/2-3/4 | 1/2" | 3/4" | 14 mm | 16.5 mm | 31 mm | 27 mm |
