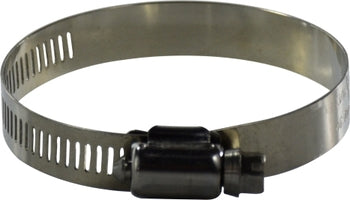

620128 by Midland | Metal Hose Worm Gear Clamp | 620 Series | 1/2" Width | ID Range: 6-1/2" to 8-1/2" | 301 Stainless Steel Band / 305 Stainless Steel Screw
Midland Industries
Metal Hose Worm Gear Clamp - 620 Series
Especially suited to industrial applications.
All Stainless Steel - use for underground and other high corrosive applications.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.86 |
| 40–79 | $9.82 |
| 80+ | $8.66 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Clamp Width:
0.5"
Minimum Clamp I.D.:
6.5"
Maximum Clamp I.D.:
8.5"
| Features: | |||
|---|---|---|---|
|
| Part Number | # | Diameter Range: | |
|---|---|---|---|
| Min. | Max. | ||
| 620006 (620-006) |
6 | 3/8" | 7/8" |
| 620008 (620-008) |
8 | 7/16" | 1" |
| 620010 (620-010) |
10 | 9/16" | 1-1/16" |
| 620012 (620-012) |
12 | 9/16" | 1-1/4" |
| 620016 (620-016) |
16 | 11/16" | 1-1/2" |
| 620020 (620-020) |
20 | 3/4" | 1-3/4" |
| 620024 (620-024) |
24 | 1-1/16" | 2" |
| 620028 (620-028) |
28 | 1-5/16" | 2-1/4" |
| 620032 (620-032) |
32 | 1-9/16" | 2-1/2" |
| 620036 (620-036) |
36 | 1-13/16" | 2-3/4" |
| 620040 (620-040) |
40 | 2-1/16" | 3" |
| 620044 (620-044) |
44 | 2-5/16" | 3-1/4" |
| 620048 (620-048) |
48 | 2-9/16" | 3-1/2" |
| 620052 (620-052) |
52 | 2-13/16" | 3-3/4" |
| 620056 (620-056) |
56 | 3-1/16" | 4" |
| 620060 (620-060) |
60 | 3-5/16" | 4-1/4" |
| 620064 (620-064) |
64 | 2-1/2" | 4-1/2" |
| 620072 (620-072) |
72 | 3" | 5" |
| 620080 (620-080) |
80 | 3-1/2" | 5-1/2" |
| 620088 (620-088) |
88 | 4" | 6" |
| 620096 (620-096) |
96 | 4-1/2" | 6-1/2" |
| 620104 (620-104) |
104 | 5" | 7" |
| 620116 (620-116) |
116 | 5-3/4" | 7-3/4" |
| 620128 (620-128) |
128 | 6-1/2" | 8-1/2" |
| 620152 (620-152) |
152 | 2" | 10" |
| 620164 (620-164) |
164 | 1-3/4" | 10-3/4" |
| 620176 (620-176) |
176 | 9-1/4" | 11-1/4" |
| 620188 (620-188) |
188 | 2-1/16" | 12-1/4" |
| 620200 (620-200) |
200 | 11" | 13" |
| 620212 (620-212) |
212 | 11-3/4" | 13-3/4" |
| 620224 (620-224) |
224 | 12-1/2" | 14-1/2" |
| 620248 (620-248) |
248 | 10-3/4" | 16" |
| 620270 (620-270) |
270 | 15-3/8" | 17-3/8" |
| 620312 (620-312) |
312 | 18" | 20" |
| 620332 (620-332) |
332 | 19-1/8" | 21-1/4" |
| 620390 (620-390) |
390 | 22-7/8" | 24-7/8" |
