61CL-10 Dixon Valve Brass Compression Fitting - Long Nut - 5/8" Tube Size x 13/16"-18 Straight Thread
Dixon

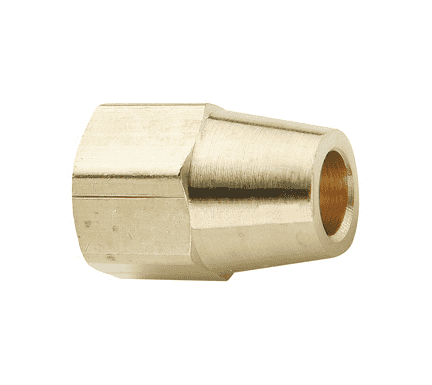

61CL-10 Dixon Valve Brass Compression Fitting - Long Nut - 5/8" Tube Size x 13/16"-18 Straight Thread

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Advantages:
  • No flaring, soldering or other preparation of tubing necessary to assemble.
  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
Specifications:
  • Reference SAE 060111.
  • Underwriter's Laboratories listed for flammable liquid. Compression fittings meet functional requirements of SAE J-512 and ASA.
Assembly Instructions:
  • Slide nut, then sleeve onto tubing. The thread end of the nut must face out.
  • Insert the tube into the fitting. Be sure the tube is bottomed on the fitting shoulder.
  • Assemble nut to body, and tighten hand-tight. Then follow the number of wrench turns as indicated in the table to the right.
Fitting Size Tube Size Turns Required to Seal from Hand-Tight
60C Series with Soft Metal Tubing 60PT Series with Thermoplastic Tubing
2 1/8" 1-1/4" -
3 3/16" 1-1/4" -
4 1/4" 1-1/4" 2
5 5/16" 1-1/4" 2
6 3/8" 2-1/4" 2
8 1/2" 2-1/4" 2
10 5/8" 2-1/4" 2
12 3/4" 2-1/4" 2
14 7/8 2-1/4" -
Part Number Tube Size Straight Thread Material Weight (Lbs)
61CL-04 1/4" 7/16"-24 Brass 0.0219
61CL-05 5/16" 1/2"-24 Brass 0.0297
61CL-06 3/8" 9/16"-24 Brass 0.0394
61CL-08 1/2" 11/16"-20 Brass 0.0715
61CL-10 5/8" 13/16"-18 Brass 0.1038
