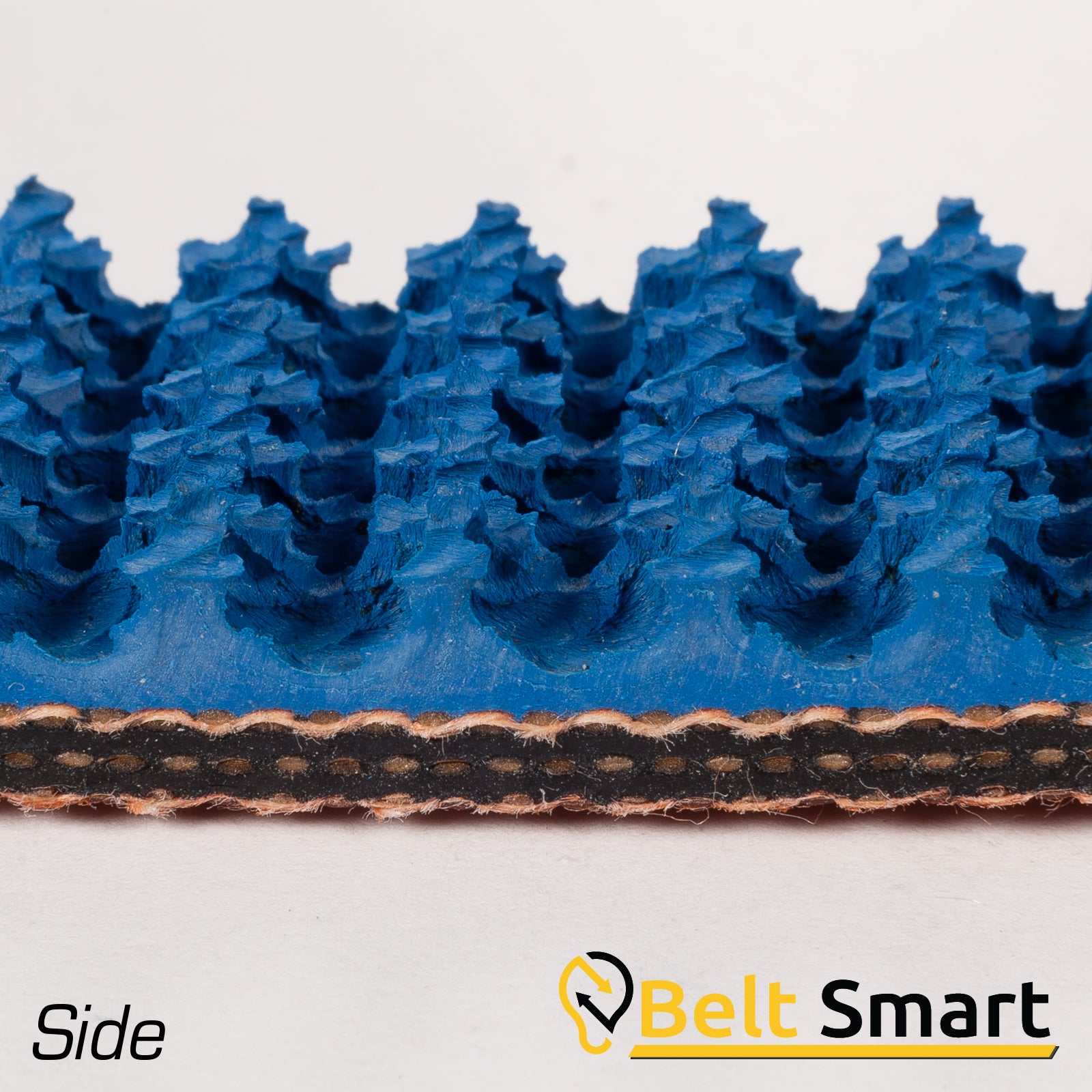

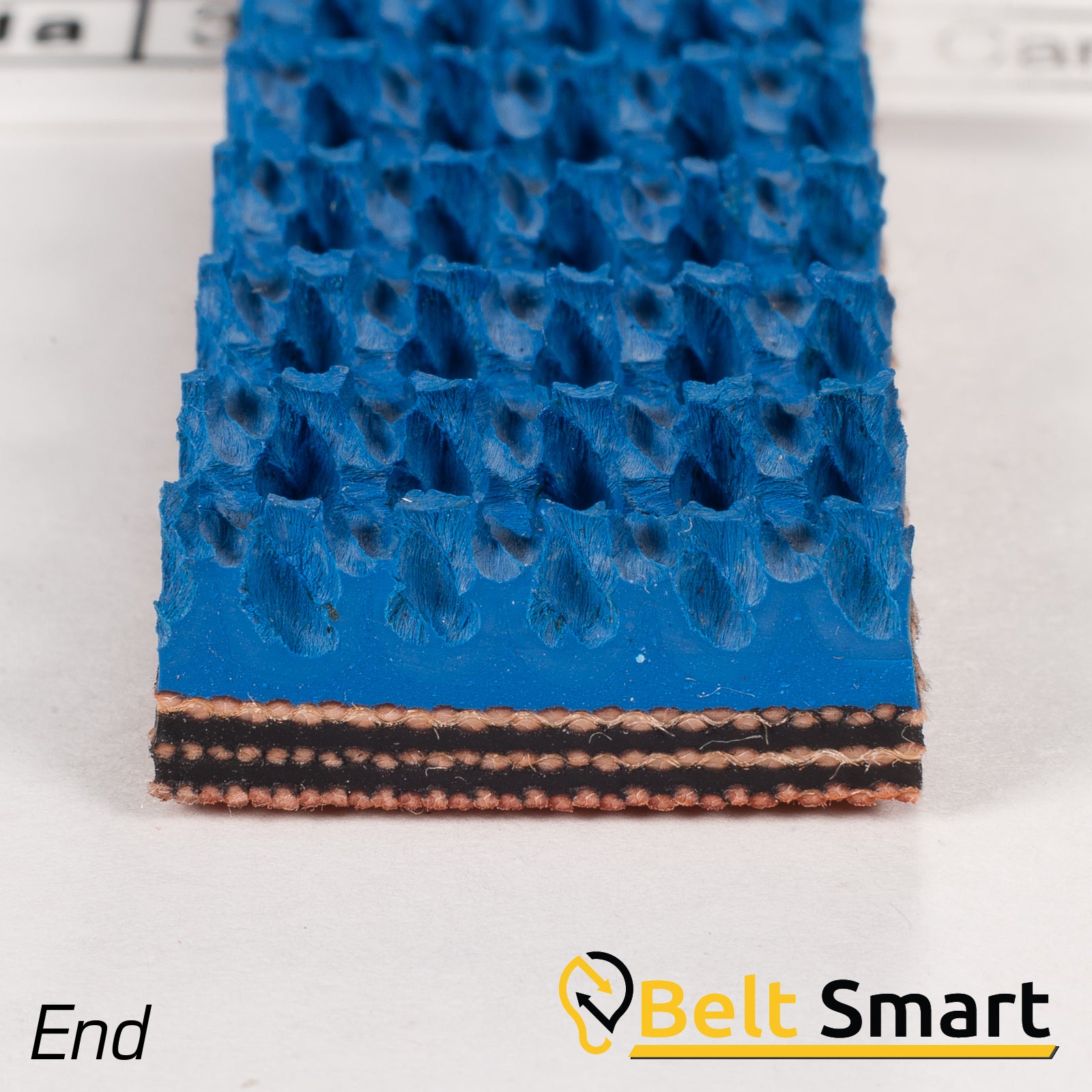

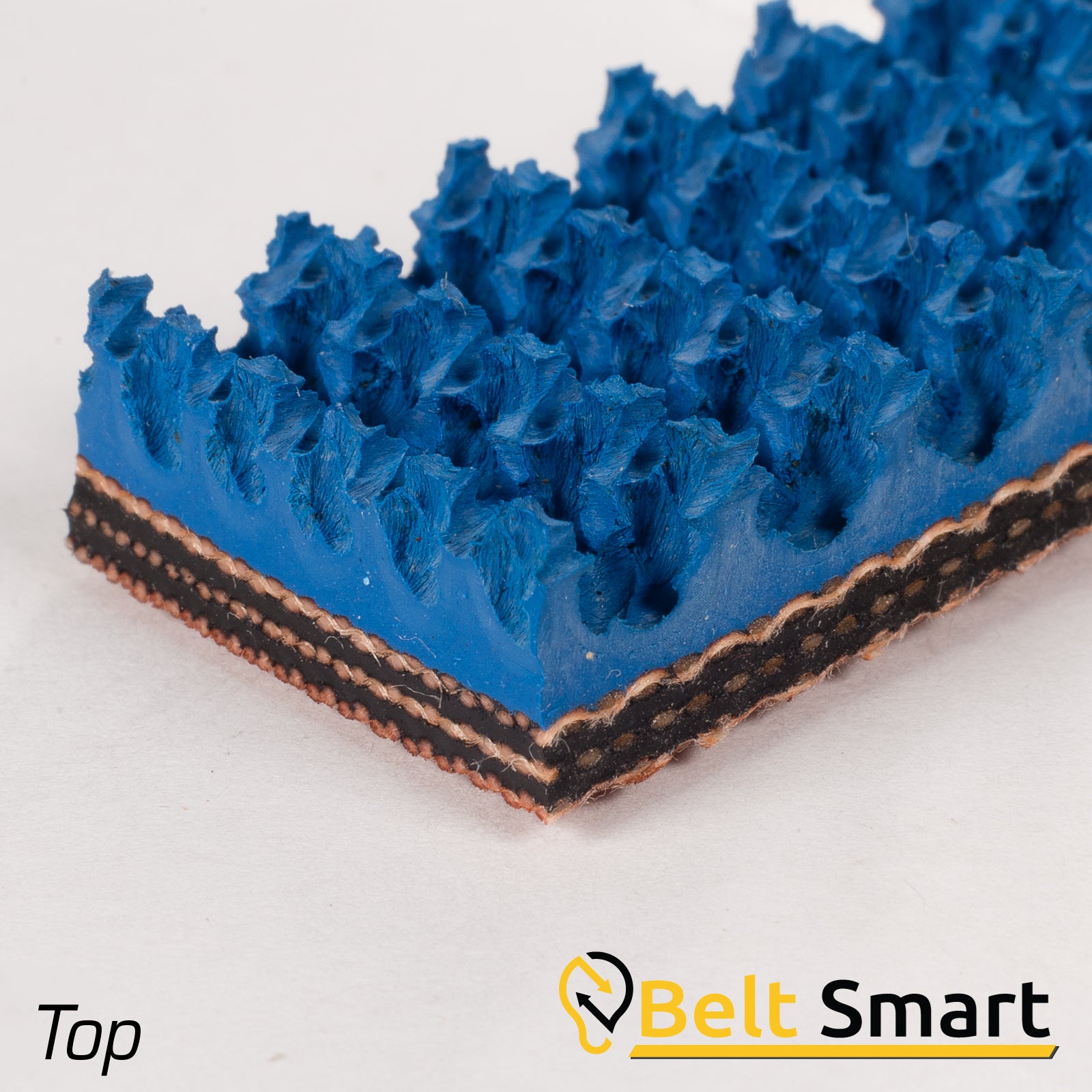

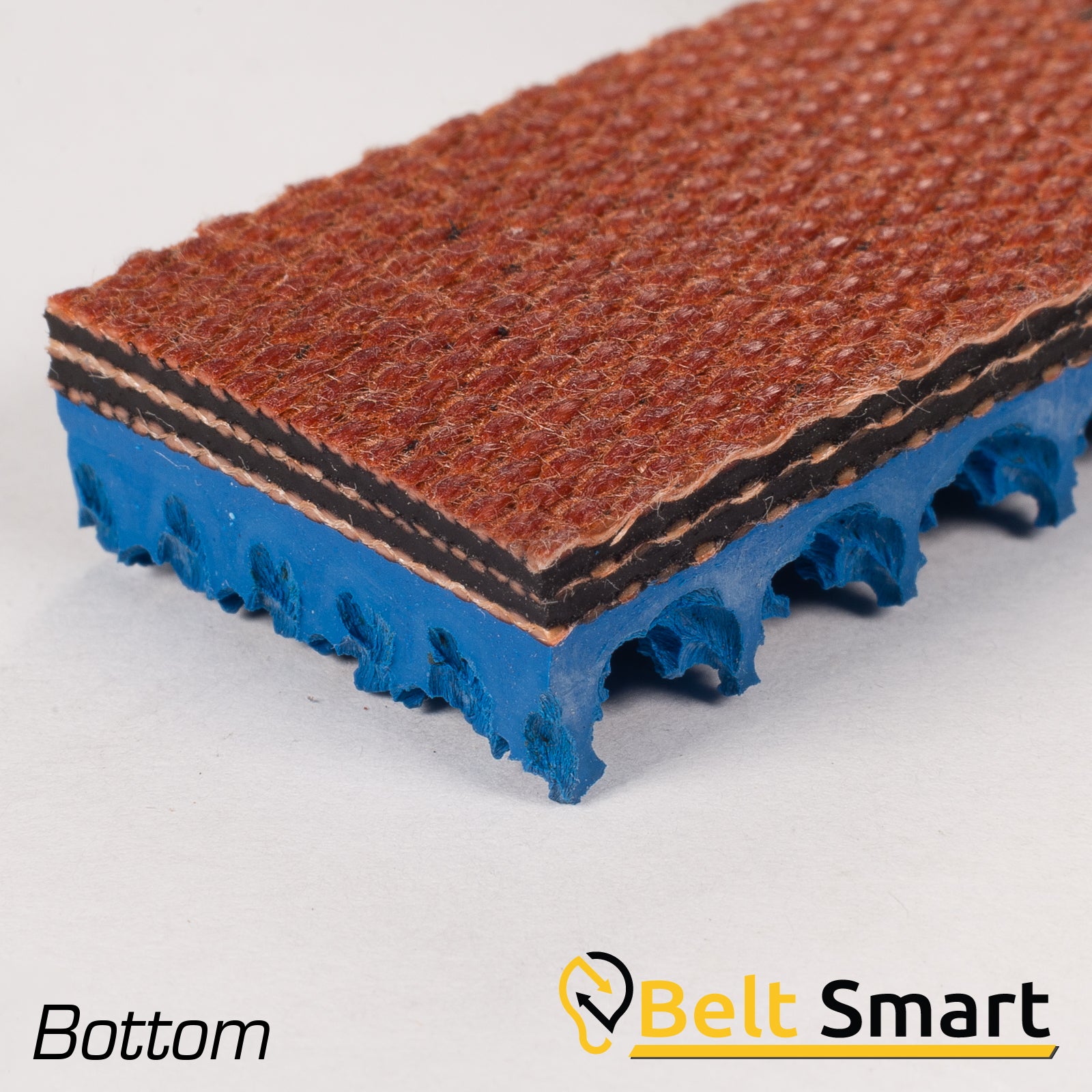

BS061A - #61a Beltservice 3 Ply 150 Blue Carbox Nitrile Roughtop x Bare Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Cardboard Cartons
Features:
Carbox nitrile roughtop yields vastly longer service life than rubber roughtop. It is ideal where regular roughtop surfaces wear down quickly and must be replaced. Features a strong synthetic carcass. These belts are popular for handling cardboard cartons.

	3 Ply 135 Tan Carbox Nitrile Roughtop x Bare Pt No.: 61	3 Ply 150 Blue Carbox Nitrile Roughtop x Bare Pt No.: 61a	3 Ply 150 Blue Carbox Nitrile Roughtop x FS Pt No.: 61b	3 Ply 225 Blue Carbox Nitrile Roughtop x Bare Pt No.: 61c
Thickness	9/32"	5/16"	N/A	N/A
Covers	Roughtop x Bare	Roughtop x Bare	Roughtop x FS	Roughtop x Bare
Carcass	45 lbs./ply Polyester	32 oz. CN40	N/A	N/A
Working Tension per Inch Width	135 lbs.	90 lbs.	N/A	N/A
Approx. Weight Lbs. Per Inch Width	.106 lbs.	.116 lbs.	N/A	N/A
Min. Pulley Diameter	2"	2-1/2"	N/A	N/A
Temperature Range	0 deg. F / 250 deg. F		N/A	N/A
Clipper Lace	#1	#2	N/A	N/A
Alligator Lace	#1	#15	N/A	N/A
Alligator Staple	#125	#125	N/A	N/A

FS = Friction Surface
