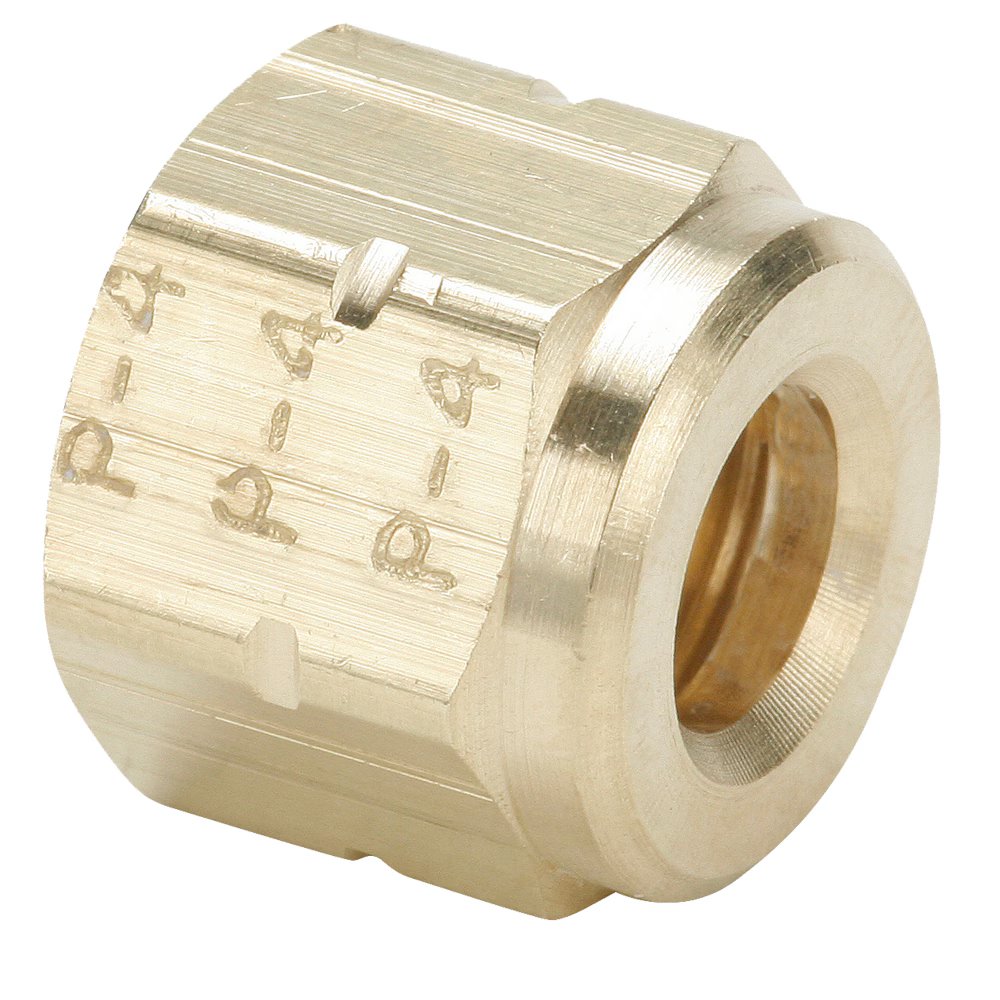

61VL-6 by Parker | Vibra-Lok Fittings | 3/8" Nut x 5/8" Thread | 3/4" Hex | Straight | Brass | Pack of 50
by Parker Hannifin
Vibra-Lok Fittings:Nut 61VL
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $179.45 |
| 20–59 | $162.27 |
| 60+ | $143.18 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Dependent on condition and tube size, refer to pressure chart |
 |
|
| Temperature Range: | -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Straight Thread | Hex (C) | D | L |
| 61VL-2 | 1/8" | 3/8"-24 | 7/16" | .156" | .44" |
| 61VL-3 | 3/16" | 7/16"-24 | 1/2" | .218" | .47" |
| 61VL-4 | 1/4" | 1/2"-24 | 9/16" | .281" | .50" |
| 61VL-5 | 5/16" | 9/16"-24 | 5/8" | .344" | .53" |
| 61VL-6 | 3/8" | 5/8"-24 | 3/4" | .406" | .53" |
| 61VL-8 | 1/2" | 13/16"-18 | 15/16" | .531" | .67" |
| 61VL-10 | 5/8" | 1"-18 | 1-1/8" | .656" | .88" |
| 61VL-12 | 3/4" | 1-1/8"-18 | 1-1/4" | .781" | .98" |
