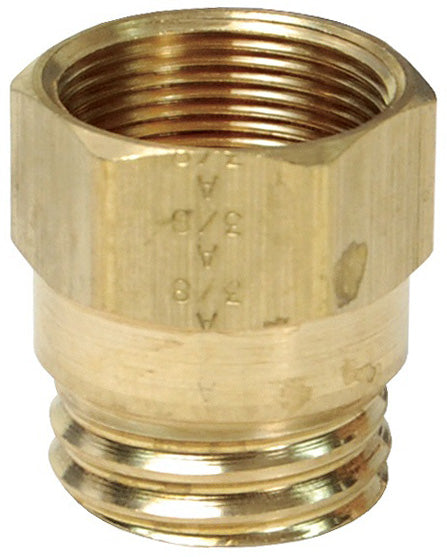

61RBSG-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Spring Guard Nut | 3/8" Hose Size | Brass Alloy 360

61RBSG-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Spring Guard Nut | 3/8" Hose Size | Brass Alloy 360

Minimum Order Quantity: 5 Units

Sale price$7.07
Buy more, save moreDiscounts applied in cart/checkout.
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Length
61RBSG-06 3/8" 31/32"-20
61RBSG-08 1/2" 1-3/32"-20

Additional Product Data:

Shape:

Straight

Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
