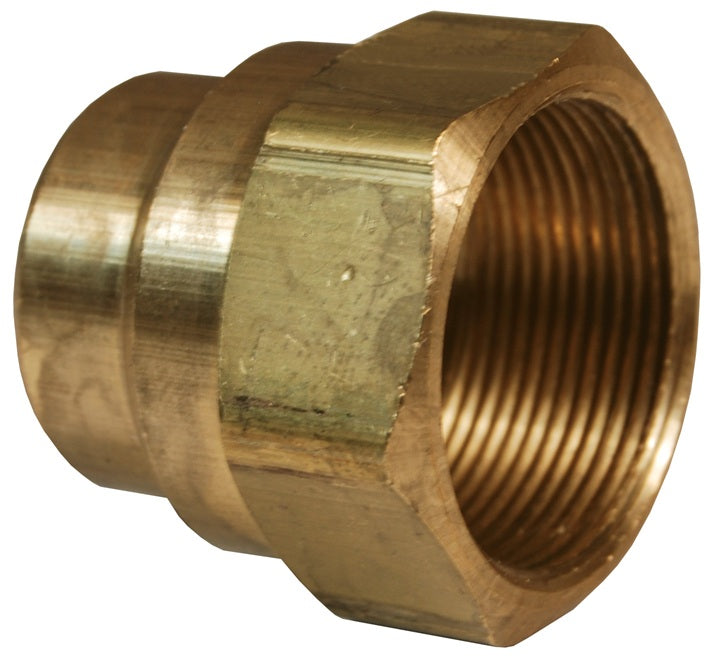

61RB-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Nut | 3/8" Hose OD | 31/32"-20 Female NPT | Brass Alloy 360

61RB-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Nut | 3/8" Hose OD | 31/32"-20 Female NPT | Brass Alloy 360

Minimum Order Quantity: 5 Units

Sale price$6.25

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Nut

For use with SAEJ1402 air brake hose in making hose assemblies
Buy More, Save More!
Quantity Price Each
20–39 $5.88
40–79 $5.31
80+ $4.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • 61RB Series
Material(s):
  • Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Thread Hex
61RB-06 3/8" 31/32"-20 1-1/32"
61RB-08 1/2" 1-3/32"-20 1-1/4"
