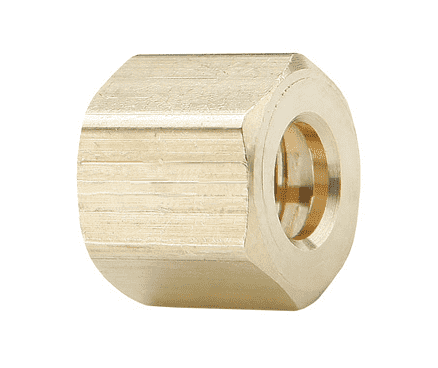

61C-14 Dixon Valve Brass Compression Fitting - Nut - 7/8" Tube Size x 1-1/8"-18 Straight Thread
Dixon

61C-14 Dixon Valve Brass Compression Fitting - Nut - 7/8" Tube Size x 1-1/8"-18 Straight Thread

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Advantages:
  • No flaring, soldering or other preparation of tubing necessary to assemble.
  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
Specifications:
  • Reference SAE 060110.
  • Underwriter's Laboratories listed for flammable liquid. Compression fittings meet functional requirements of SAE J-512 and ASA.
Assembly Instructions:
  • Slide nut, then sleeve onto tubing. The thread end of the nut must face out.
  • Insert the tube into the fitting. Be sure the tube is bottomed on the fitting shoulder.
  • Assemble nut to body, and tighten hand-tight. Then follow the number of wrench turns as indicated in the table to the right.
Fitting Size Tube Size Turns Required to Seal from Hand-Tight
60C Series with Soft Metal Tubing 60PT Series with Thermoplastic Tubing
2 1/8" 1-1/4" -
3 3/16" 1-1/4" -
4 1/4" 1-1/4" 2
5 5/16" 1-1/4" 2
6 3/8" 2-1/4" 2
8 1/2" 2-1/4" 2
10 5/8" 2-1/4" 2
12 3/4" 2-1/4" 2
14 7/8 2-1/4" -
Part Number Tube Size Straight Thread Material Weight (Lbs)
61C-02 1/8" 5/16"-24 Brass 0.0100
61C-03 3/16" 3/8"-24 Brass 0.0105
61C-04 1/4" 7/16"-24 Brass 0.0150
61C-05 5/16" 1/2"-24 Brass 0.0150
61C-06 3/8" 9/16"-24 Brass 0.0200
61C-07 7/16" 5/8"-24 Brass 0.0220
61C-08 1/2" 11/16"-20 Brass 0.0450
61C-10 5/8" 13/16"-18 Brass 0.0600
61C-12 3/4" 1"-18 Brass 0.1000
61C-14 7/8" 1-1/8"-18 Brass 0.0850

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
