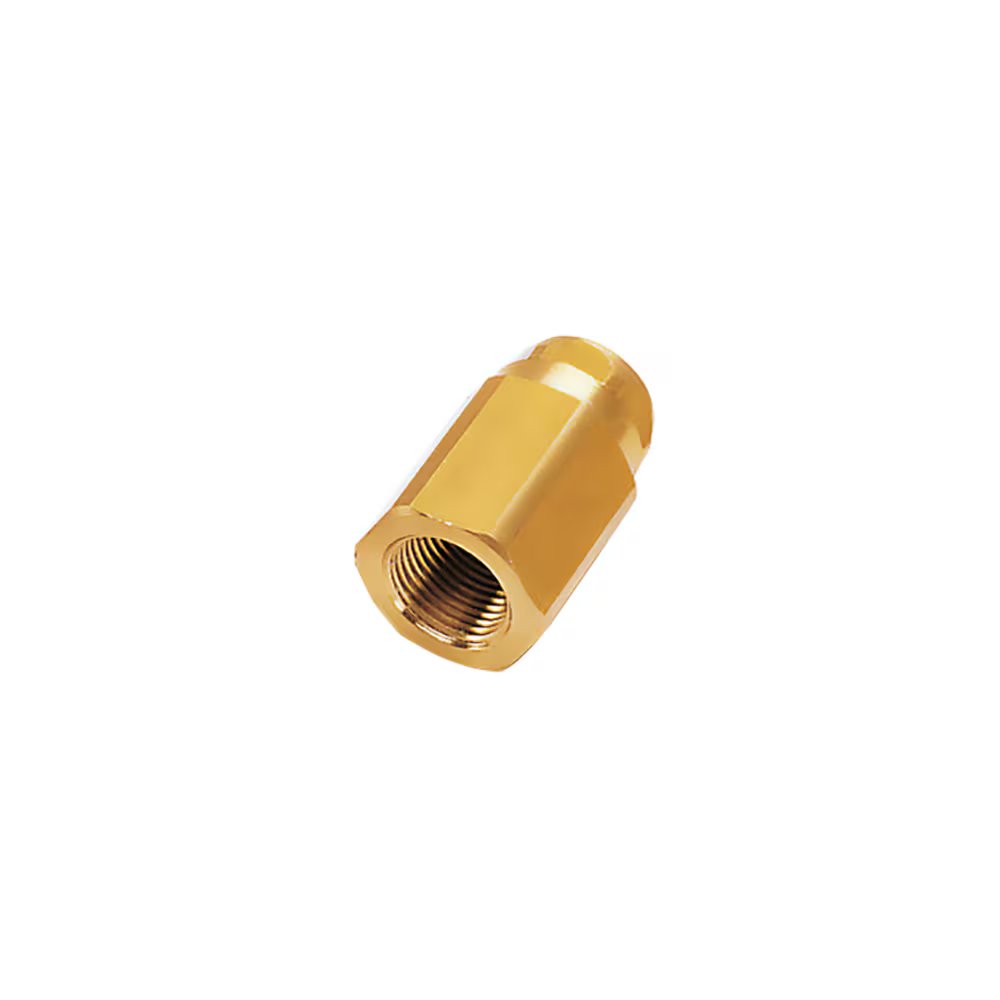

6114 04 56 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1 Female M8 Metric Thread | 13 mm Hex | Straight | Brass | Pack of 10

6114 04 56 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1 Female M8 Metric Thread | 13 mm Hex | Straight | Brass | Pack of 10

Sale price$158.94

by Parker Hannifin
LF 6100® Push-In Fittings:6114 Stud Fitting, Female Metric Parallel Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $149.40
20–59 $135.10
60+ $119.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6114 Series
Shape:

Straight

Material(s):
  • Brass
Technical Characteristics:
  • Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases.
  • Working Pressure: Vacuum to 60 bar.
  • Working Temperature: -40°C to +120°C
Advantages:
  • Sealing guaranteed by 3 seals
  • Tube cannot be disconnected without the use of a spanner
  • Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Brass
  • Spring collet: Brass
  • Gripping teeth or collet: Brass
  • Seals: EPDM
Part Number ØD C E F1 F2 H Kg
6114 04 56 4 mm M8x1 8 mm 13 mm 11 mm 25.5 mm .021 Kg
