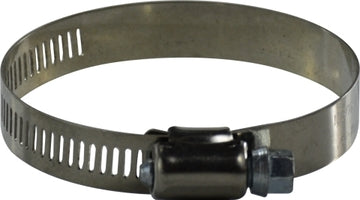

611052 by Midland | Metal Hose Band Clamp | 611 Series | 1/2" Width | ID Range: 2-13/16" to 3-3/4" | 201 Stainless Steel Band / Carbon Steel Screw
Midland Industries
Metal Hose Miniature Worm Gear Clamp - 611 Series
The perfect clamp for automobiles, plumbing, home and garden general clamping applications, with anti-corrosive properties varying with the number of components made from stainless steel.
Product Data:
Material(s):
Clamp Width:
0.5"
Minimum Clamp I.D.:
2.8125"
Maximum Clamp I.D.:
3.75"
| Features: | |||
|---|---|---|---|
|
| Part Number | # | Diameter Range: | |
|---|---|---|---|
| Min. | Max. | ||
| 611006 (611-006) |
6 | 3/8" | 7/8" |
| 611008 (611-008) |
8 | 7/16" | 1" |
| 611010 (611-010) |
10 | 9/16" | 1-1/16" |
| 611012 (611-012) |
12 | 9/16" | 1-1/4" |
| 611016 (611-016) |
16 | 11/16" | 1-1/2" |
| 611020 (611-020) |
20 | 3/4" | 1-3/4" |
| 611024 (611-024) |
24 | 1-1/16" | 2" |
| 611028 (611-028) |
28 | 1-5/16" | 2-1/4" |
| 611032 (611-032) |
32 | 1-9/16" | 2-1/2" |
| 611036 (611-036) |
36 | 1-13/16" | 2-3/4" |
| 611040 (611-040) |
40 | 2-1/16" | 3" |
| 611044 (611-044) |
44 | 2-5/16" | 3-1/4" |
| 611048 (611-048) |
48 | 2-9/16" | 3-1/2" |
| 611052 (611-052) |
52 | 2-13/16" | 3-3/4" |
| 611056 (611-056) |
56 | 3-1/16" | 4" |
| 611060 (611-060) |
60 | 3-5/16" | 4-1/4" |
| 611064 (611-064) |
64 | 2-1/2" | 4-1/2" |
| 611072 (611-072) |
72 | 3" | 5" |
| 611080 (611-080) |
80 | 3-1/2" | 5-1/2" |
| 611088 (611-088) |
88 | 4" | 6" |
| 611096 (611-096) |
96 | 4-1/2" | 6-1/2" |
| 611104 (611-104) |
104 | 5" | 7" |
| 611116 (611-116) |
116 | 5-3/4" | 7-3/4" |
| 611128 (611-128) |
128 | 6-1/2" | 8-1/2" |
| 611152 (611-152) |
152 | 2" | 10" |
| 611164 (611-164) |
164 | 1-3/4" | 10-3/4" |
| 611176 (611-176) |
176 | 9-1/4" | 11-1/4" |
| 611188 (611-188) |
188 | 2-1/16" | 12-1/4" |
| 611200 (611-200) |
200 | 11" | 13" |
| 611212 (611-212) |
212 | 11-3/4" | 13-3/4" |
| 611224 (611-224) |
224 | 12-1/2" | 14-1/2" |
| 611248 (611-248) |
248 | 10-3/4" | 16" |
| 611270 (611-270) |
270 | 15-3/8" | 17-3/8" |
| 611312 (611-312) |
312 | 18" | 20" |
| 611332 (611-332) |
332 | 19-1/8" | 21-1/4" |
| 611390 (611-390) |
390 | 22-7/8" | 24-7/8" |
