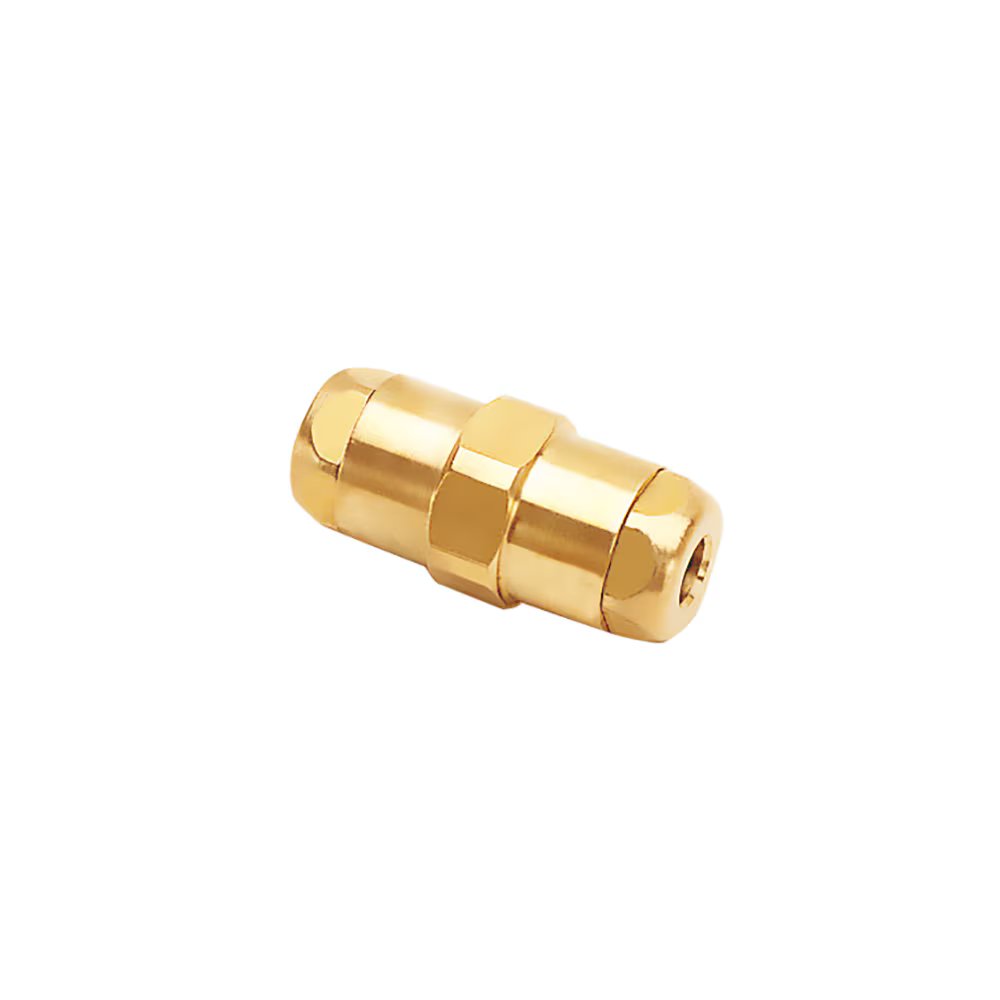

6106 06 00 by Parker | Legris Tube-to-Tube | 6mm Tube Size Connector | 39mm Length | Straight | Brass | Pack of 10

6106 06 00 by Parker | Legris Tube-to-Tube | 6mm Tube Size Connector | 39mm Length | Straight | Brass | Pack of 10

Sale price$206.27

by Parker Hannifin
LF 6100® Push-In Fittings:6106 Tube-to-Tube Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $193.89
20–59 $175.33
60+ $154.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6106 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases.
  • Working Pressure: Vacuum to 60 bar.
  • Working Temperature: -40°C to +120°C
Advantages:
  • Sealing guaranteed by 3 seals
  • Tube cannot be disconnected without the use of a spanner
  • Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Brass
  • Spring collet: Brass
  • Gripping teeth or collet: Brass
  • Seals: EPDM
Part Number ØD F1 F2 L Kg
6106 04 00 4 mm 13 mm 11 mm 34 mm .025 Kg
6106 06 00 6 mm 17 mm 14 mm 39 mm .044 Kg
6106 08 00 8 mm 19 mm 17 mm 46 mm .069 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
