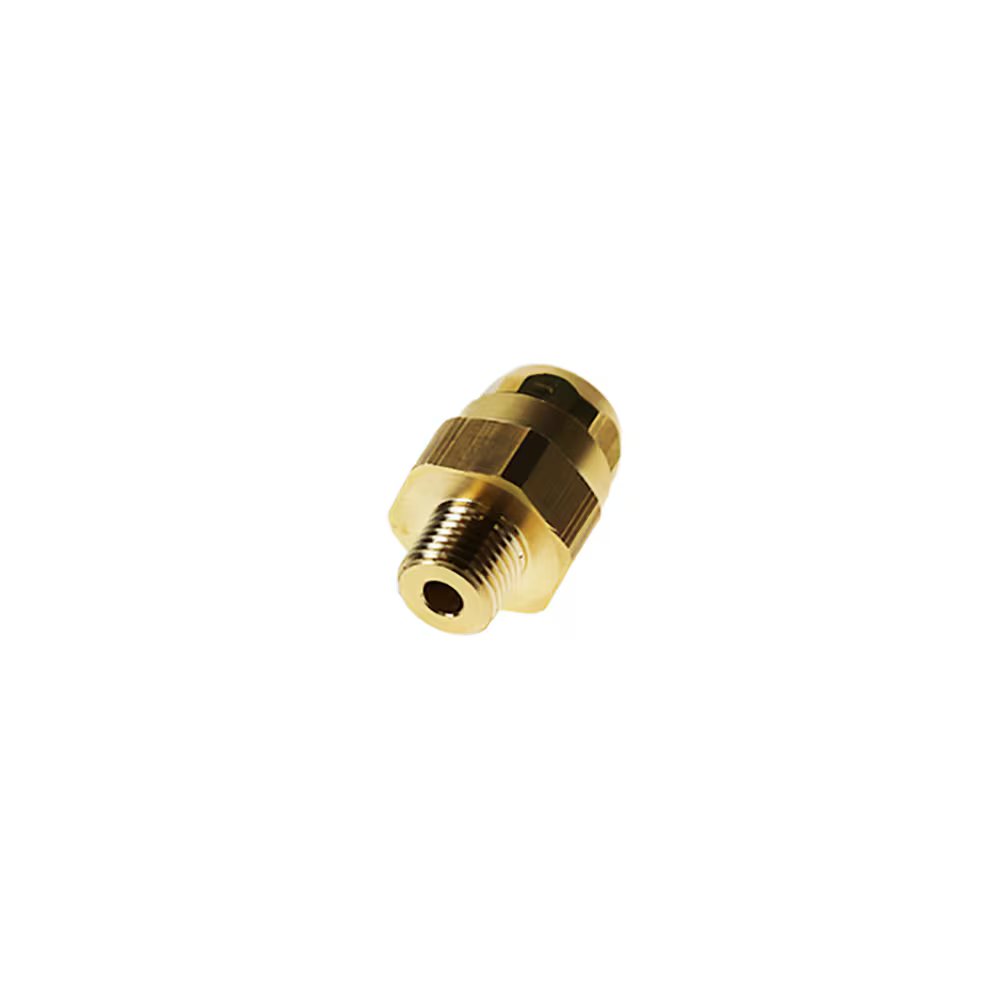

6101 04 60 by Parker | Legris Stud Fitting | 4 mm Tube Size x M10x1 Male M10 Metric Thread | 13 mm Hex | Straight | Brass | Pack of 10

6101 04 60 by Parker | Legris Stud Fitting | 4 mm Tube Size x M10x1 Male M10 Metric Thread | 13 mm Hex | Straight | Brass | Pack of 10

Sale price$140.37

by Parker Hannifin
LF 6100® Push-In Fittings:6101 Stud Fitting, Male Parallel and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $131.95
20–59 $119.31
60+ $105.28
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6101 Series
Shape:

Straight

Material(s):
  • Brass
Technical Characteristics:
  • Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases.
  • Working Pressure: Vacuum to 60 bar.
  • Working Temperature: -40°C to +120°C
Advantages:
  • Sealing guaranteed by 3 seals
  • Tube cannot be disconnected without the use of a spanner
  • Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Brass
  • Spring collet: Brass
  • Gripping teeth or collet: Brass
  • Seals: EPDM
Part Number ØD F1 F2 H Kg
6101 04 60 4 mm M10x1 13 mm 11 mm 14 mm
6101 06 60 6 mm M10x1 17 mm 14 mm 17.5 mm
