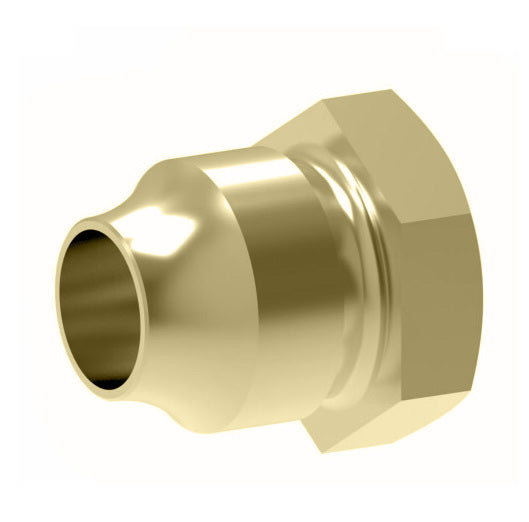

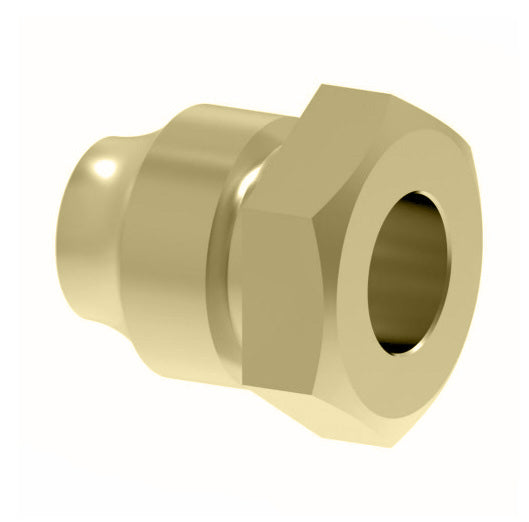

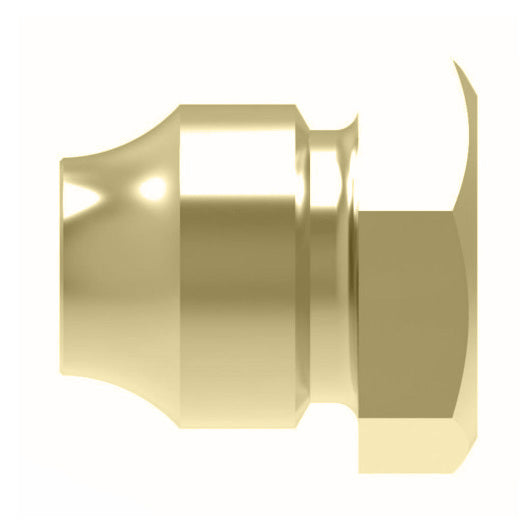

6100X3 by Danfoss | Threaded Sleeve Adapter | Nut | 3/16" Tube OD | Brass
6100X3 by Danfoss | Threaded Sleeve Adapter | Nut | 3/16" Tube OD | Brass
6100X3 by Danfoss | Threaded Sleeve Adapter | Nut | 3/16" Tube OD | Brass

6100X3 by Danfoss | Threaded Sleeve Adapter | Nut | 3/16" Tube OD | Brass

Minimum Order Quantity: 10 Units

Sale price$1.50

Aeroquip® by Danfoss
Threaded Sleeve Adapter - Nut
Buy More, Save More!
Quantity Price Each
20–39 $1.41
40–79 $1.28
80+ $1.13
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Applications:
  • Oil, air, water and lubrication systems.
Advantages:
  • Easy to assemble (no flaring).
  • Two (2) piece construction.
  • Fair Vibration Resistance.
Used With:
  • Aluminum and copper tubing.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass.
Operating Pressure:
  • 500 psi for 1/8" to 1/4" sizes.
  • 250 psi for 5/16" and 3/8" sizes.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Meets ASA and ASME specifications.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-20 9/16-20
Brass
Part Number 		Tube OD Hex
C		 D L
6100X2 1/8" 3/8" 0.130" 0.50"
6100X3 3/16" 7/16" 0.193" 0.53"
6100X4 1/4" 1/2" 0.255" 0.56"
6100X6 3/8" 5/8" 0.380" 0.61"
