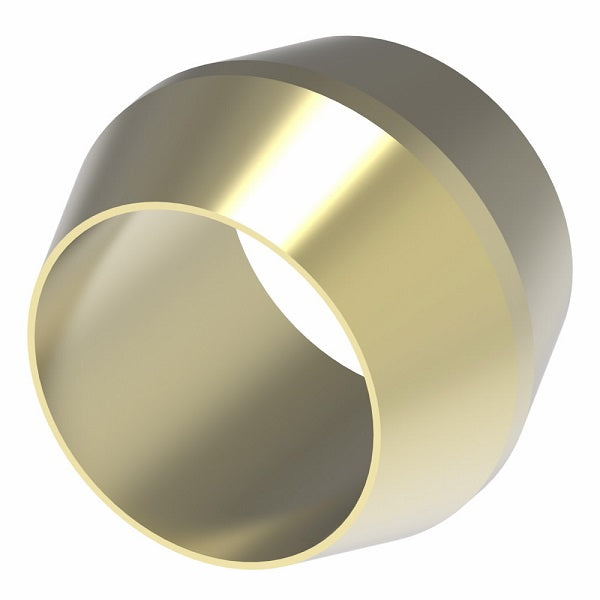

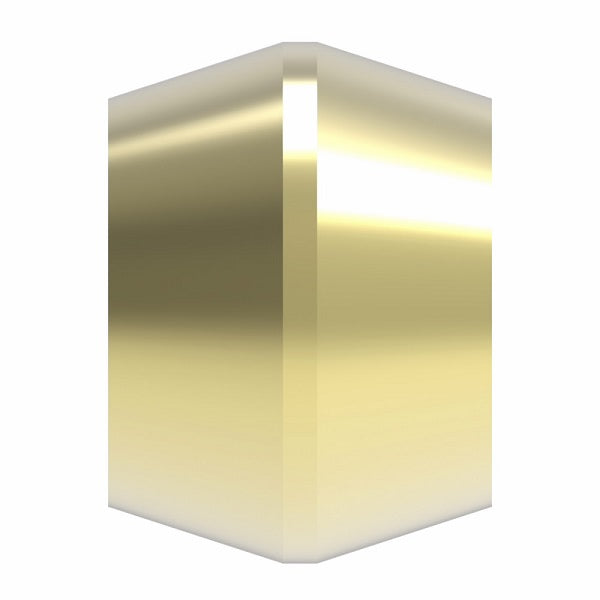

60X8 by Danfoss | Compression Fitting | Sleeve | 1/2" Tube OD | Brass
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
Compression Fitting - Sleeve - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.18 |
| 40–79 | $1.06 |
| 80+ | $0.94 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 1" |
| Thread Size | 5/16-24 | 3/8-24 | 7/16-24 | 1/2-24 | 9/16-24 | 5/8-24 | 11/16-20 | 13/16-18 | 1-18 | 1-1/4-18 |
 |
Brass Part Number |
Tube O.D. | D | F | L |
|---|---|---|---|---|---|
| 60X2 | 1/8" | 0.13" | 0.19" | 0.19" | |
| 60X3 | 3/16" | 0.19" | 0.27" | 0.22" | |
| 60X4 | 1/4" | 0.26" | 0.34" | 0.25" | |
| 60X5 | 5/16" | 0.32" | 0.41" | 0.25" | |
| 60X6 | 3/8" | 0.38" | 0.47" | 0.25" | |
| 60X7 | 7/16" | 0.44" | 0.53" | 0.31" | |
| 60X8 | 1/2" | 0.51" | 0.59" | 0.38" | |
| 60X10 | 5/8" | 0.63" | 0.72" | 0.38" | |
| 60X12* | 3/4" | 0.76" | 0.88" | 0.44" | |
* Made To Order
