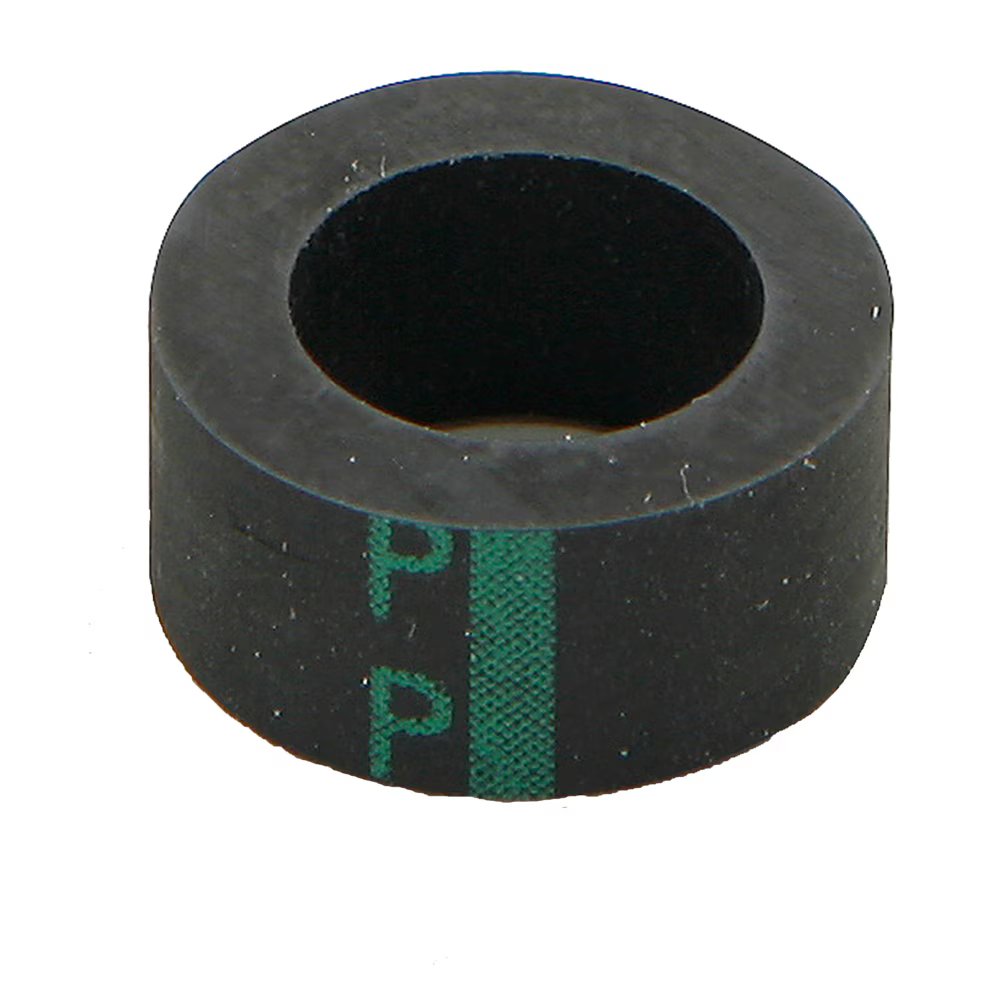

60VL-6 by Parker | Vibra-Lok Fittings | 3/8" Sleeve | Buna-N | | Pack of 100

60VL-6 by Parker | Vibra-Lok Fittings | 3/8" Sleeve | Buna-N | | Pack of 100

Sale price$188.11

by Parker Hannifin
Vibra-Lok Fittings:Sleeve 60VL

Package Quantity: 100 Units

Buy More, Save More!
Quantity Price Each
5–19 $176.82
20–59 $159.89
60+ $141.08
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Vibra-Lok
Series:
  • 60VL Series
Shape:

No Orientation
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size A D L
60VL-2 1/8" .306" .100" .20"
60VL-3 3/16" .359" .156" .20"
60VL-4 1/4" .422" .219" .21"
60VL-5 5/16" .484" .281" .24"
60VL-6 3/8" .547" .344" .25"
60VL-8 1/2" .688" .469" .36"
60VL-10 5/8" .875" .594" .48"
60VL-12 3/4" 1.000" .720" .59"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
