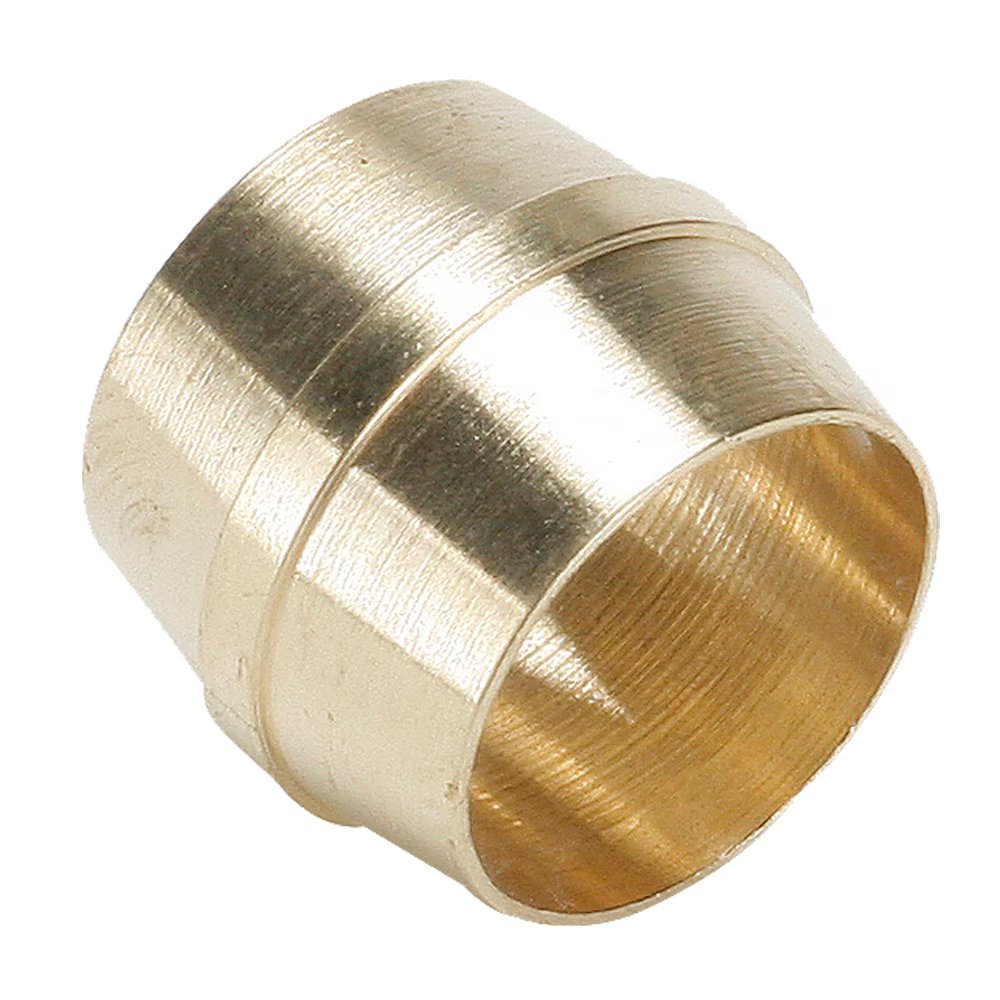

60NTA-10 by Parker | Air Brake–NTA® Fittings | 5/8" Sleeve | .746" Length | Straight | Brass | Pack of 50

60NTA-10 by Parker | Air Brake–NTA® Fittings | 5/8" Sleeve | .746" Length | Straight | Brass | Pack of 50

Sale price$73.02

by Parker Hannifin
Air Brake–NTA® Fittings:Sleeve 60NTA

Package Quantity: 50 Units

Buy More, Save More!
Quantity Price Each
20–39 $68.64
40–79 $62.07
80+ $54.77
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Air Brake–NTA®
Series:
  • 60NTA Series
Shape:

Straight
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size A D L
60NTA-3* 3/16" .255" .194" .23"
60NTA-4 1/4" .359" .256" .30"
60NTA-6 3/8" .479" .384" .39"
60NTA-8 1/2" .624" .509" .43"
60NTA-10 5/8" .746" .634" .49"
60NTA-12 3/4" .922" .760" .54"

*Meets D.O.T. FMVSS 571.106 specification. No applicable SAE specification for this tube size.
