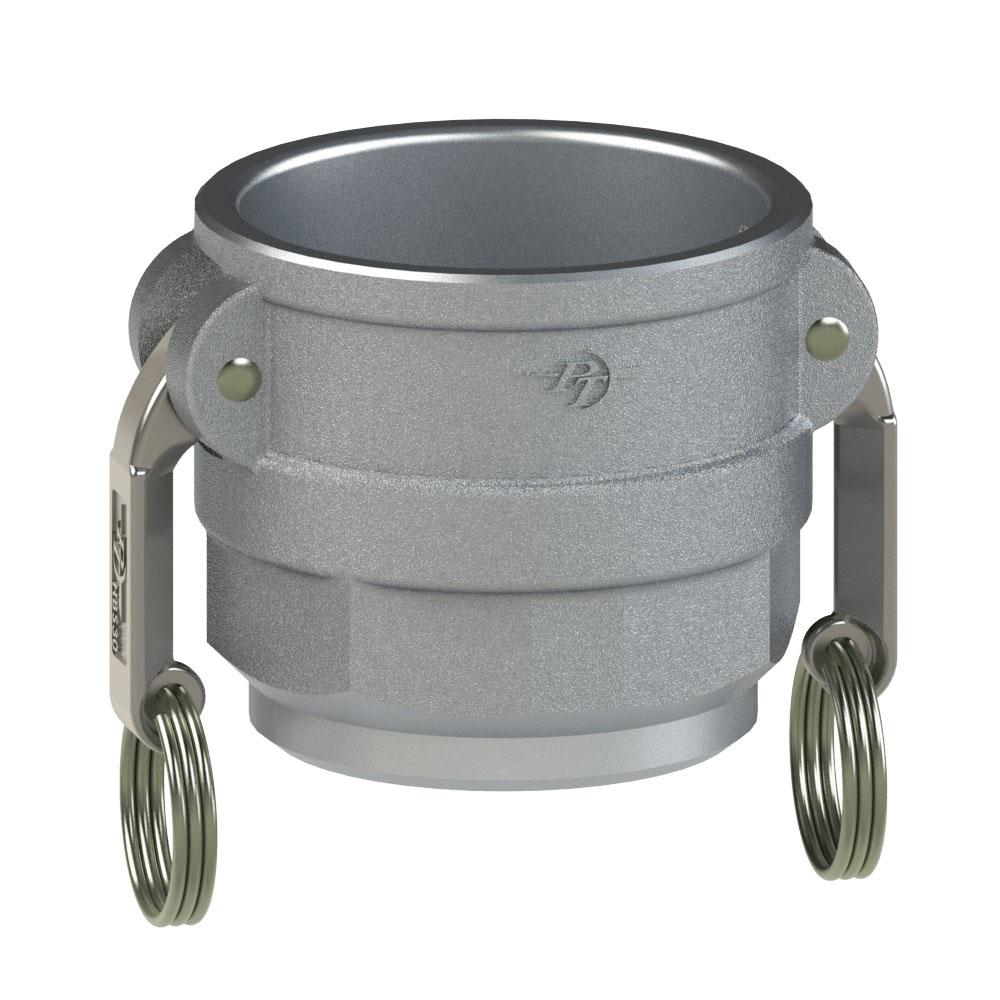

60626016 (60DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 6" Coupler x Butt Weld for Schedule 10 Pipe | Aluminum
PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for Schedule 10 Pipe | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $217.58 |
| 20–59 | $196.75 |
| 60+ | $173.60 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Size | O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Inside Diameter (C) |
Overall Length (D) |
Max. Allowable Working Press. (PSI)* |
| 20DWB | 60622019 | 2" | 7.54" | 3.94" | 1.75" | 3.09" | 250 PSI |
| 30DWB | 60623016 | 3" | 9.56" | 5.46" | 2.83" | 3.82" | 200 PSI |
| 40DWB | 60624013 | 4" | 10.66" | 6.56" | 3.50" | 4.00" | 150 PSI |
| 60DWB | 60626016 | 6" | 16.26" | 10.16" | 5.50" | 4.54" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
