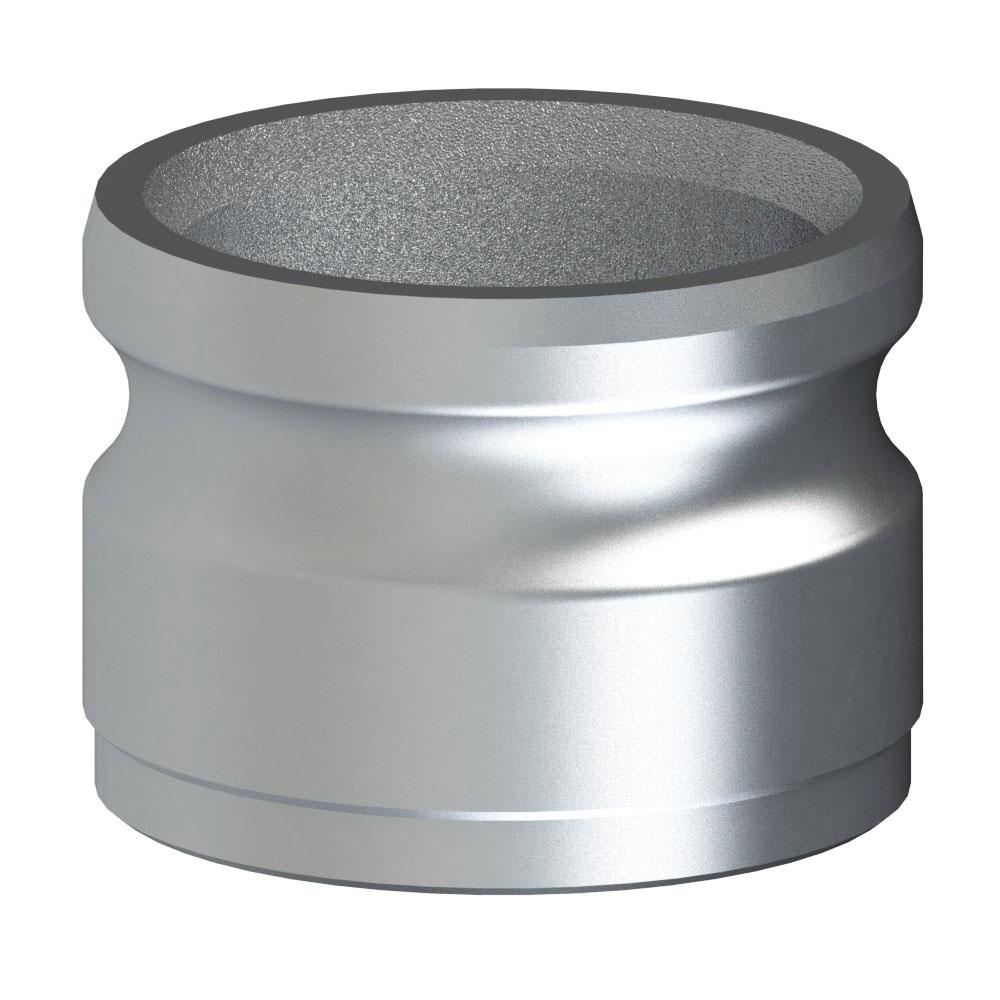

60608012 (80AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 8" Adapter x Butt Weld for Schedule 40 Pipe | Aluminum
PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 40 Pipe | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $406.57 |
| 15–29 | $367.64 |
| 30+ | $324.39 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Name |
Item # | Size | Overall Length (A) |
Inside Diameter (B) |
Max. Allowable Working Press. (PSI)* |
| 20AWB | 60602017 | 2" | 2.50" | 1.75" | 250 PSI |
| 30AWB | 60603012 | 3" | 2.75" | 2.81" | 200 PSI |
| 40AWB | 60604018 | 4" | 2.88" | 3.75" | 150 PSI |
| 50AWB | 60605013 | 5" | 2.70" | 4.75" | 75 PSI |
| 60AWB | 60606013 | 6" | 3.00" | 5.84" | 75 PSI |
| 80AWB | 60608012 | 8" | 5.90" | 7.80" | 50 PSI |
| 100AWB | 60609003 | 10" | 6.73" | 9.90" | 50 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
