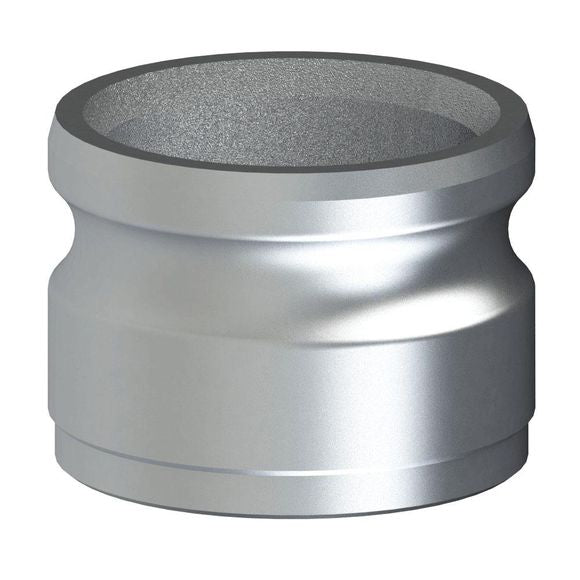

60606017 (60AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 6" Adapter x Butt Weld for Schedule 10 Pipe | Aluminum

60606017 (60AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 6" Adapter x Butt Weld for Schedule 10 Pipe | Aluminum

Sale price$159.95

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 10 Pipe | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $150.35
20–59 $135.96
60+ $119.96
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 6in Male Cam & Groove
  • 6in Weld End
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Size Overall
Length
(A)		 Inside
Diameter
(B)		 Max. Allowable
Working Press.
(PSI)*
20AWB 60602019 2" 2.50" 1.75" 250 PSI
30AWB 60603011 3" 2.75" 2.81" 200 PSI
40AWB 60604013 4" 2.88" 3.75" 150 PSI
50AWB 60605020 5" 2.70" 4.75" 75 PSI
60AWB 60606017 6" 3.00" 5.84" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
