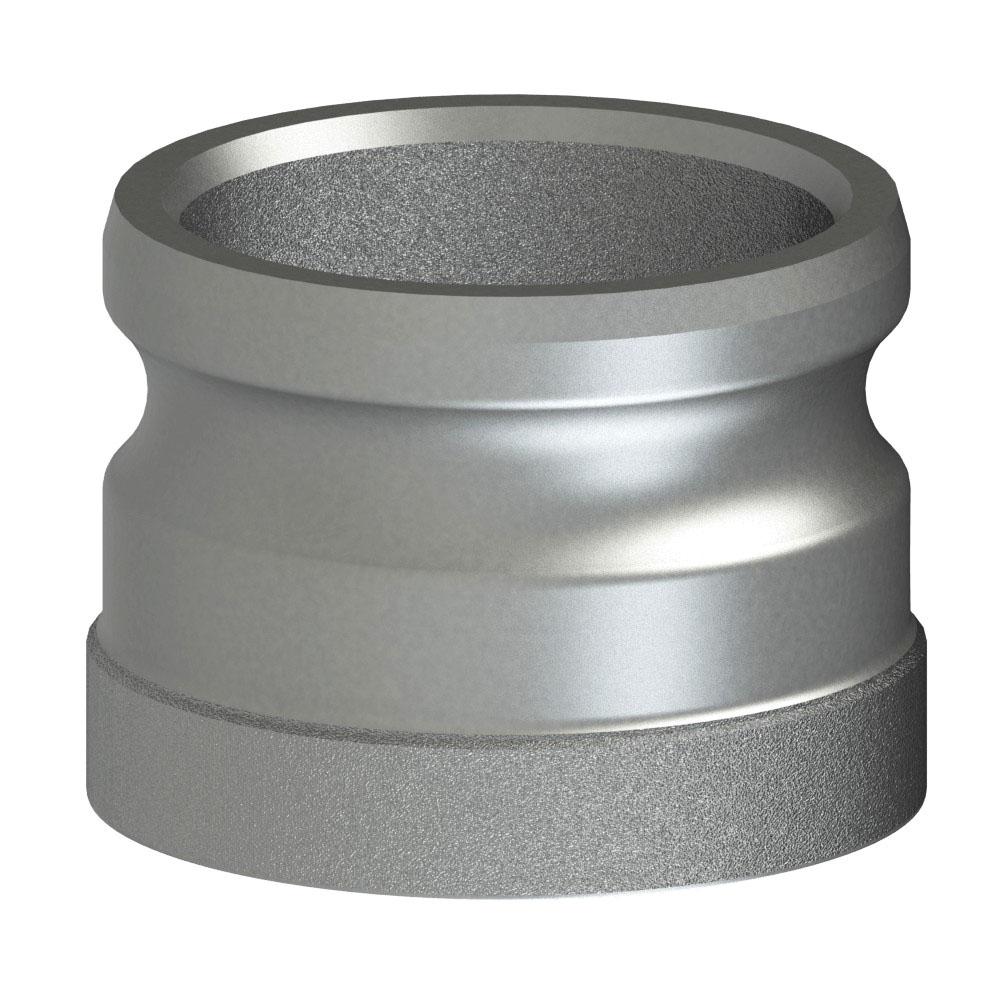

60604007A (40AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 4" Adapter x Socket Weld for Tube | Aluminum
PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Tube | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $72.77 |
| 20–59 | $65.81 |
| 60+ | $58.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Size | Socket Depth (A) |
Outside Diameter (B) |
Inside Diameter (C) |
Overall Length (D) |
Socket Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 15AWS | 60601501 | 1-1/2" | 0.40" | 2.25" | 1.35" | 2.13" | 1.52" | 250 PSI |
| 20AWS | 60602003 | 2" | 0.40" | 2.74" | 1.81" | 2.50" | 2.02" | 250 PSI |
| 25AWS | 60602501 | 2-1/2" | 0.40" | 3.25" | 2.14" | 2.56" | 2.52" | 200 PSI |
| 30AWS | 60603001 | 3" | 0.40" | 3.75" | 2.81" | 2.75" | 3.02" | 200 PSI |
| 40AWS | 60604007A | 4" | 0.60" | 5.01" | 3.00" | 2.97" | 4.03" | 150 PSI |
| 50AWS | 60605001 | 5" | 0.60" | 6.00" | 4.78" | 2.94" | 5.03" | 75 PSI |
| 60AWS | 60606002 | 6" | 0.60" | 7.00" | 5.84" | 2.90" | 6.03" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
