60600-12-3/8 by AIGNEP | 60/62 Series | Standpipe Adapter | 12mm Stud x 3/8" BSPP Male W/O-Ring | Stainless Steel
Minimum Order Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.86 |
| 40–79 | $1.68 |
| 80+ | $1.49 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Standpipe Stainless
Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

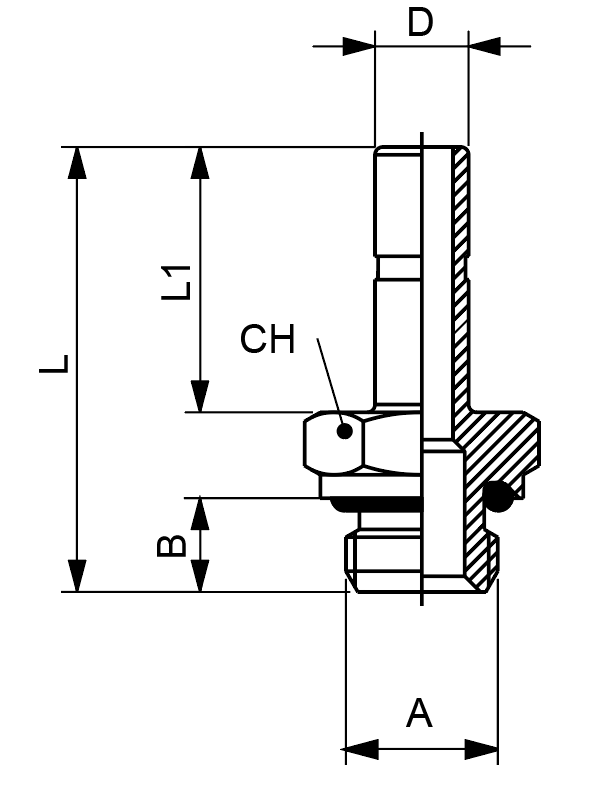

| Product Number | D | A | B | L | L1 | CH |
|---|---|---|---|---|---|---|
| 60600-6-1/8 | 6 mm | 1/8" | 6 mm | 28.5 mm | 17 mm | 13 mm |
| 60600-8-1/4 | 8 mm | 1/4" | 8 mm | 31.5 mm | 18 mm | 14 mm |
| 60600-10-1/4 | 10 mm | 1/4" | 8 mm | 35.5 mm | 22 mm | 14 mm |
| 60600-10-3/8 | 10 mm | 3/8" | 9 mm | 37.5 mm | 22 mm | 20 mm |
| 60600-12-3/8 | 12 mm | 3/8" | 9 mm | 40 mm | 24.5 mm | 20 mm |
| 60600-12-1/2 | 12 mm | 1/2" | 10 mm | 42.5 mm | 24.5 mm | 24 mm |
