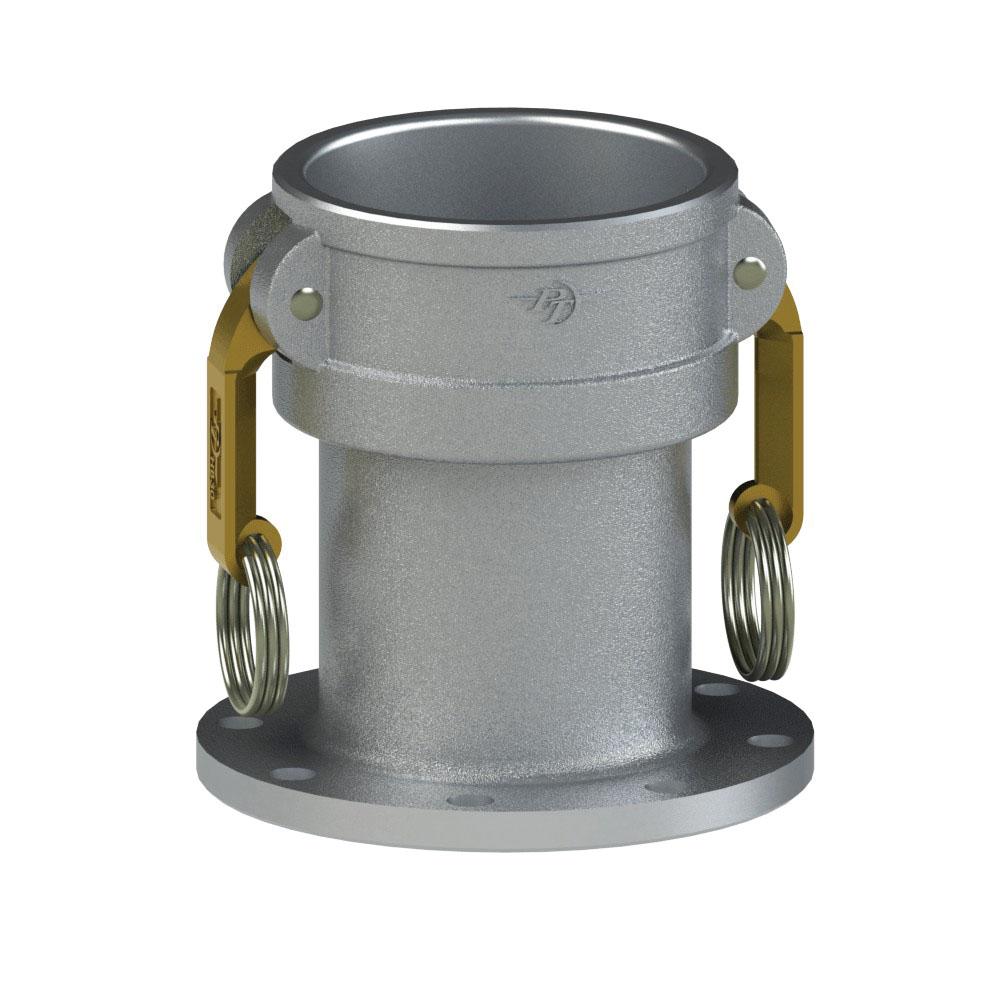

6058000075 (TTF30X40C) by PT-Coupling | Reducing Petroleum Handling Cam & Groove Adapter | Type TTFC | 3" Coupler x 4" TTMA Flange | Aluminum/HB
PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFC | Coupler x TTMA Flange | Aluminum/HB
PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $143.49 |
| 20–59 | $129.75 |
| 60+ | $114.49 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Flange Size (TTMA) |
O. D. with Cam Arms Extended (A) |
Overall Length (C) |
Inside Diameter (E) |
Outside Diameter (F) |
Bolt Hole Diameter (J) |
Number of Holes (K) |
Bolt Circle Diameter (L) |
Max. Allowable Working Press. (PSI)* |
| TTF30C | 6058000074 | 3" | 3" | 9.56" | 5.66" | 2.90" | 5.63" | 0.44" | 8 | 4.88" | 200 PSI |
| TTF30X40C | 6058000075 | 3" | 4" | 9.56" | 5.66" | 2.90" | 5.63" | 0.44" | 8 | 4.88" | 150 PSI |
| TTF40C | 6058000076 | 4" | 4" | 10.66" | 5.68" | 3.60" | 6.63" | 0.44" | 8 | 5.88" | 150 PSI |
| TTF60C | 60586000 | 6" | 6" | 16.26" | 7.25" | 5.60" | 8.88" | 0.44" | 12 | 8.13" | 75 PSI |
* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
