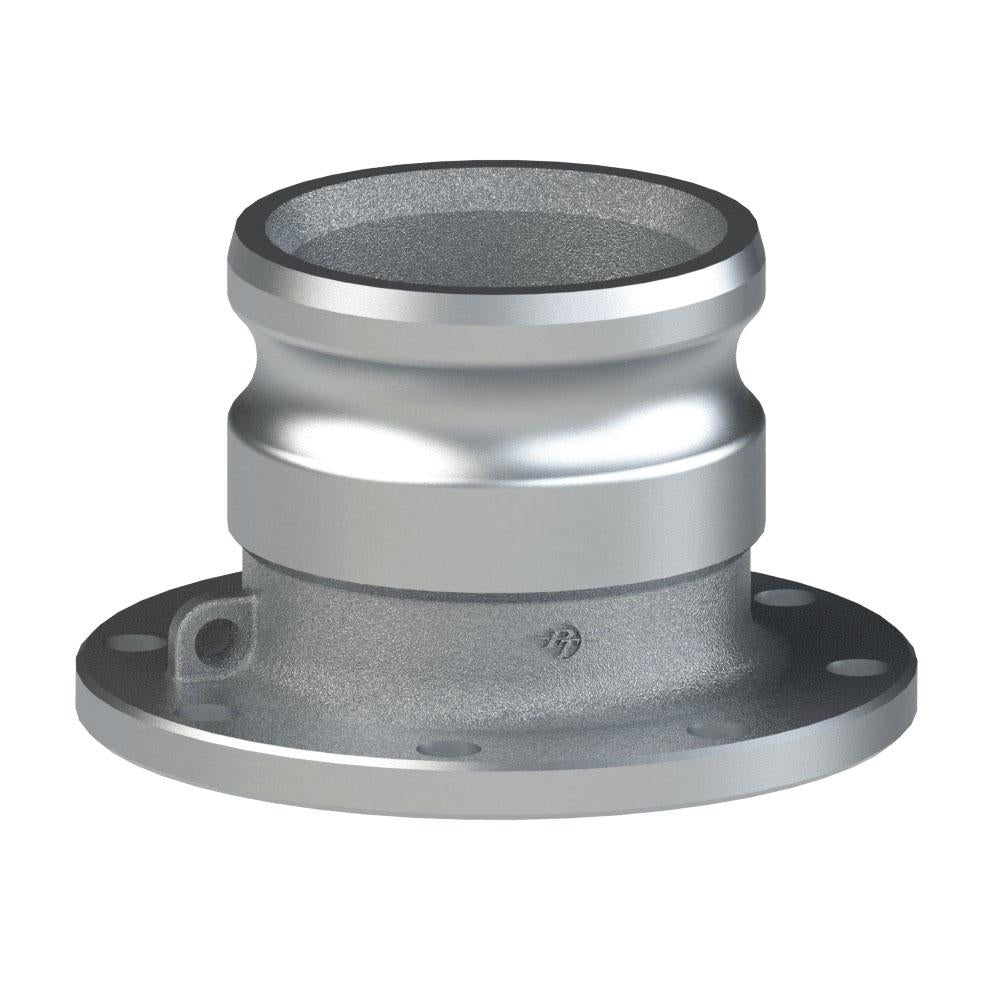

60566040 (TTF60X40A) by PT-Coupling | Reducing Petroleum Handling Cam & Groove Adapter | Type TTFA | 6" Adapter x 4" TTMA Flange | Aluminum
PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFA | Adapter x TTMA Flange | Aluminum
PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $217.09 |
| 20–59 | $196.31 |
| 60+ | $173.21 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Flange Size (TTMA) |
Overall Length (C) |
Inside Diameter (E) |
Outside Diameter (F) |
Bolt Hole Diameter (J) |
Number of Holes (K) |
Bolt Circle Diameter (L) |
Max. Allowable Working Press. (PSI)* |
| TTF20A | 60562000 | 2" | 2" | 2.93" | 1.63" | 4.50" | 0.44" | 6 | 3.75" | 250 PSI |
| TTF20X30A | 60562030 | 2" | 3" | 2.93" | 1.63" | 4.50" | 0.44" | 6 | 3.75" | 200 PSI |
| TTF20X40A | 60562040 | 2" | 4" | 2.93" | 1.63" | 4.50" | 0.44" | 6 | 3.75" | 150 PSI |
| TTF30A | 60563000 | 3" | 3" | 3.38" | 2.80" | 5.63" | 0.44" | 8 | 4.88" | 200 PSI |
| TTF30X40A | 60563040 | 3" | 4" | 3.38" | 2.80" | 5.63" | 0.44" | 8 | 4.88" | 150 PSI |
| TTF40A | 60564000 | 4" | 4" | 3.35" | 3.78" | 6.63" | 0.44" | 8 | 5.88" | 150 PSI |
| TTF60A | 60566000 | 6" | 6" | 4.88" | 5.84" | 8.88" | 0.44" | 12 | 8.13" | 75 PSI |
| TTF60X40A | 60566040 | 6" | 4" | - | - | - | - | - | - | 75 PSI |
** Denotes parts are produced as welded fabrication.
* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
