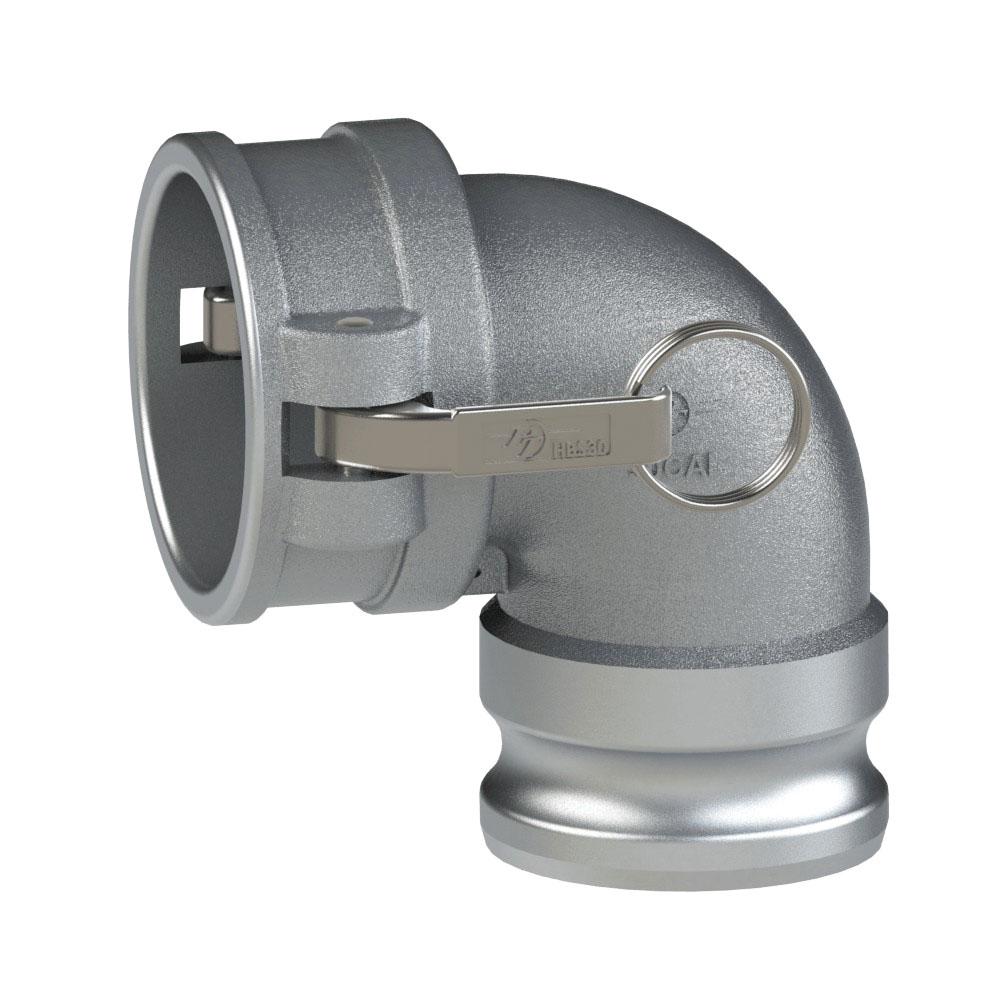

60503130 (30CAL) by PT-Coupling | Cam & Groove Coupler | Type CAL | 90° Elbow | 3" Coupler x 3" Adapter | Aluminum/HBS | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type CAL | 90° Elbow | Coupler x Adapter | Aluminum/HBS | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $112.96 |
| 20–59 | $102.14 |
| 60+ | $90.13 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Coupler Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 20CAL | 60502120 | 90° | 2" | 2" | 250 PSI |
| 30CAL | 60503130 | 90° | 3" | 3" | 200 PSI |
| 30CAL-45 | 6050313045 | 45° | 3" | 3" | 200 PSI |
| 40CAL | 60504140 | 90° | 4" | 4" | 150 PSI |
| 40CAL-45 | 60504145 | 45° | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
