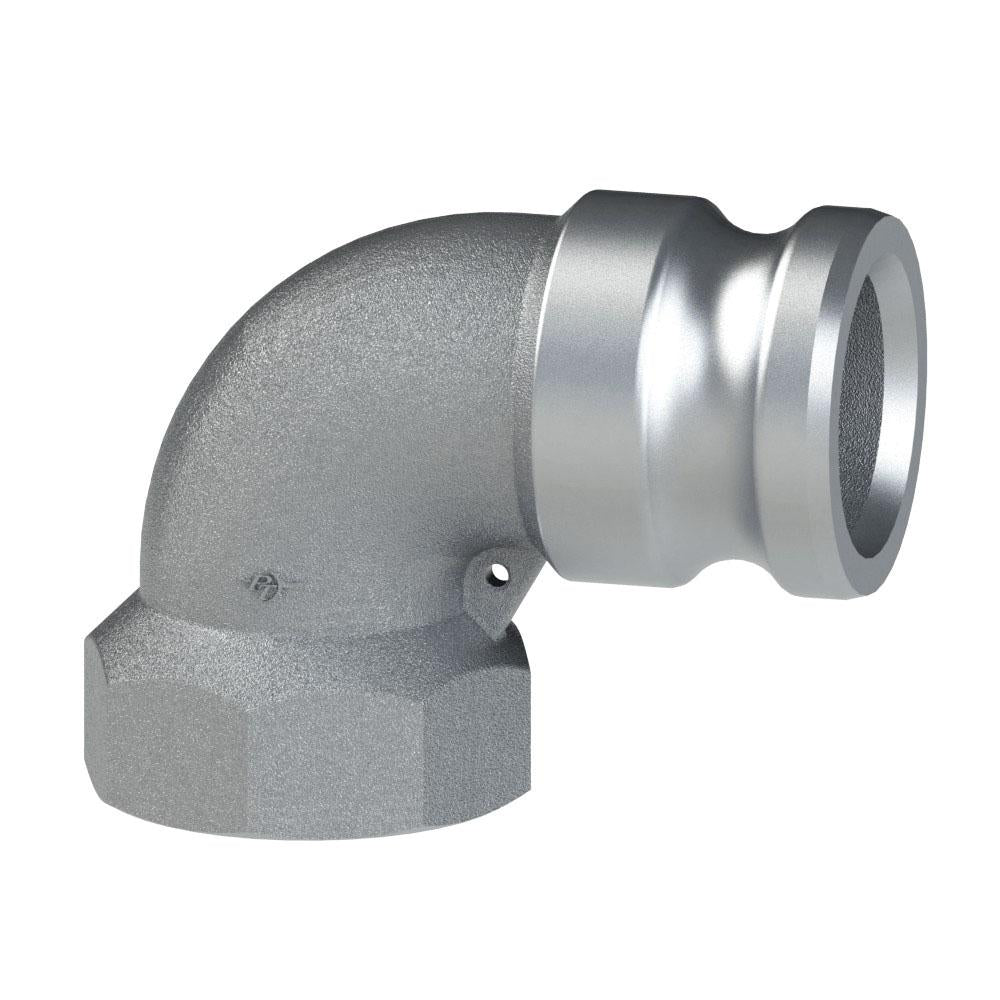

60493000 (30LA) by PT-Coupling | Cam & Groove Adapter | Type LA | 90° Elbow | 3" Adapter x 3" Female NPT | Aluminum
PT Coupling
Cam & Groove (Camlock) Adapter | Type LA | 90° Elbow | Adapter x Female NPT | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $85.70 |
| 20–59 | $77.49 |
| 60+ | $68.38 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Adapter Size |
Female NPT Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 15LA | 60491500 | 90° | 1-1/2" | 1-1/2" | 250 PSI |
| 20LA | 60492000 | 90° | 2" | 2" | 250 PSI |
| 30LA | 60493000** | 90° | 3" | 3" | 200 PSI |
** Denotes parts are produced as welded fabrication
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
