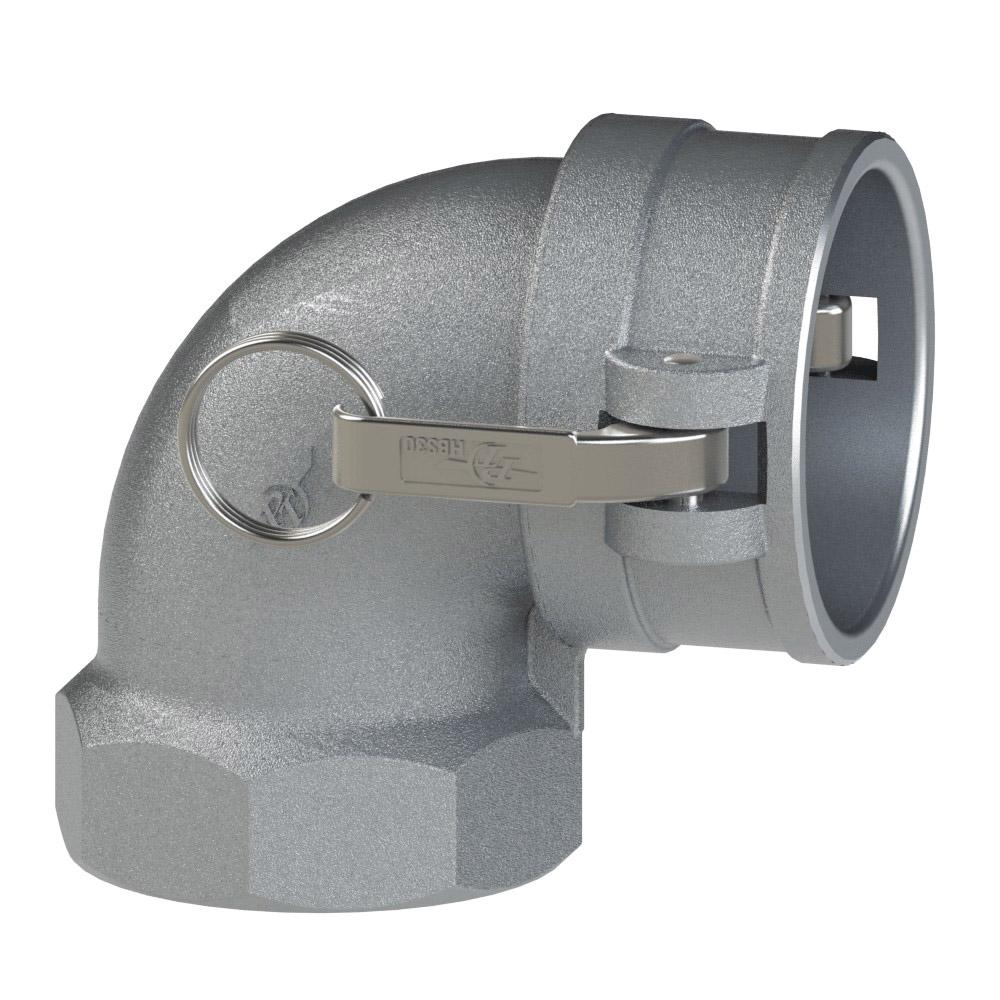

60481000 (10LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 1" Coupler x 1" Female NPT | Aluminum/HBS | Buna-N Seal

60481000 (10LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 1" Coupler x 1" Female NPT | Aluminum/HBS | Buna-N Seal

Sale price$58.96
Buy more, save moreDiscounts applied in cart/checkout.
Features & Applications:
  • HBS cam arms are made of 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Orientation Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10LD 60481000 90° 1" 1" 250 PSI
15LD 60481500 90° 1-1/2" 1-1/2" 250 PSI
20LD 60482000 90° 2" 2" 250 PSI
25LD 60482500 90° 2-1/2" 2-1/2" 200 PSI
30LD 60483000 90° 3" 3" 200 PSI
40LD 60484000 90° 4" 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type D

Ends Configuration:
  • 1in Female Cam & Groove
  • 1in Female NPT

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
