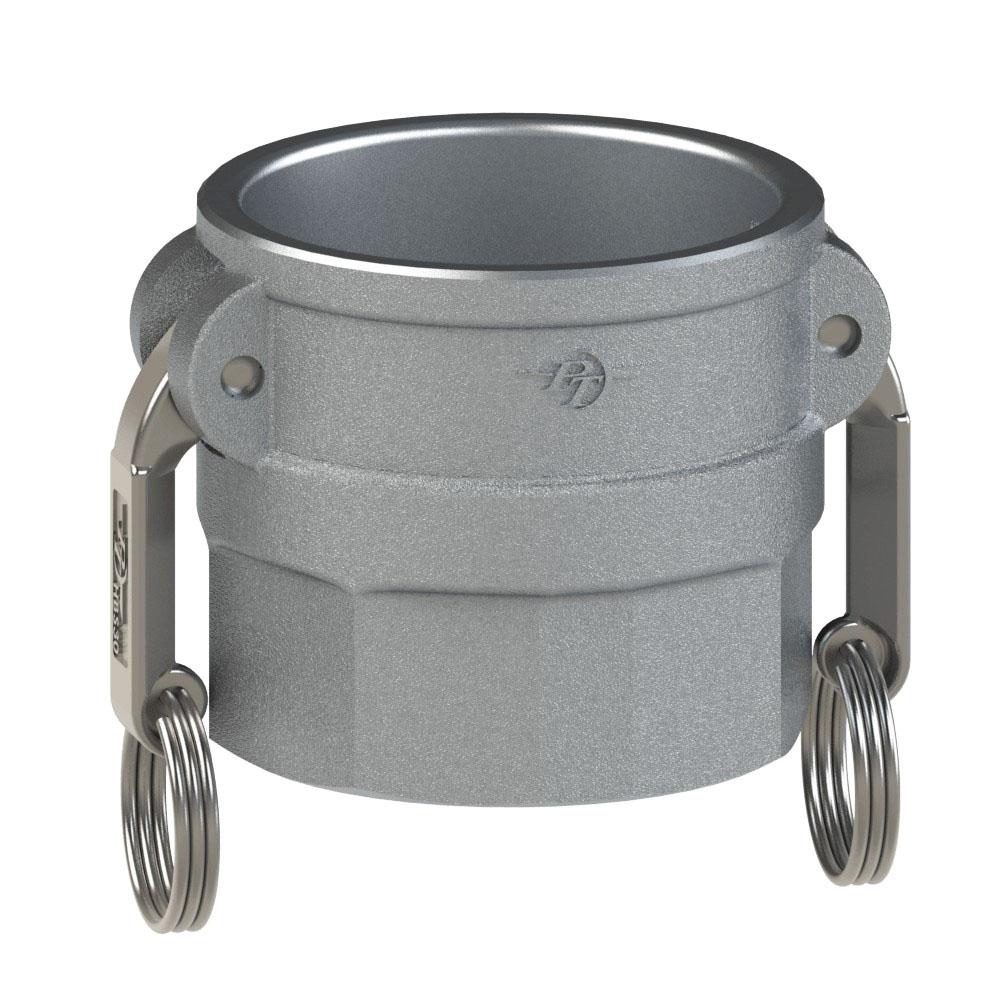

60393025 (30X25DFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type DFH | 3" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals
PT Coupling
Cam & Groove (Camlock) Adapter | Type DFH | Coupler x Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $98.84 |
| 20–59 | $89.38 |
| 60+ | $78.86 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type B
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
 |
|||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Female Fire Hose Thread (NH) Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 15DFH | 60391500 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 2.80" | 1.50" | 250 PSI |
| 25DFH | 60392500 | 2-1/2" | 2-1/2" | 8.03" | 4.43" | 3.40" | 2.38" | 200 PSI |
| 30DFH | 60393000 | 3" | 3" | 9.56" | 5.46" | 3.50" | 2.88" | 200 PSI |
| 30X25DFH | 60393025 | 3" | 2-1/2" | 9.56" | 5.46" | 3.50" | 2.88" | 200 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
