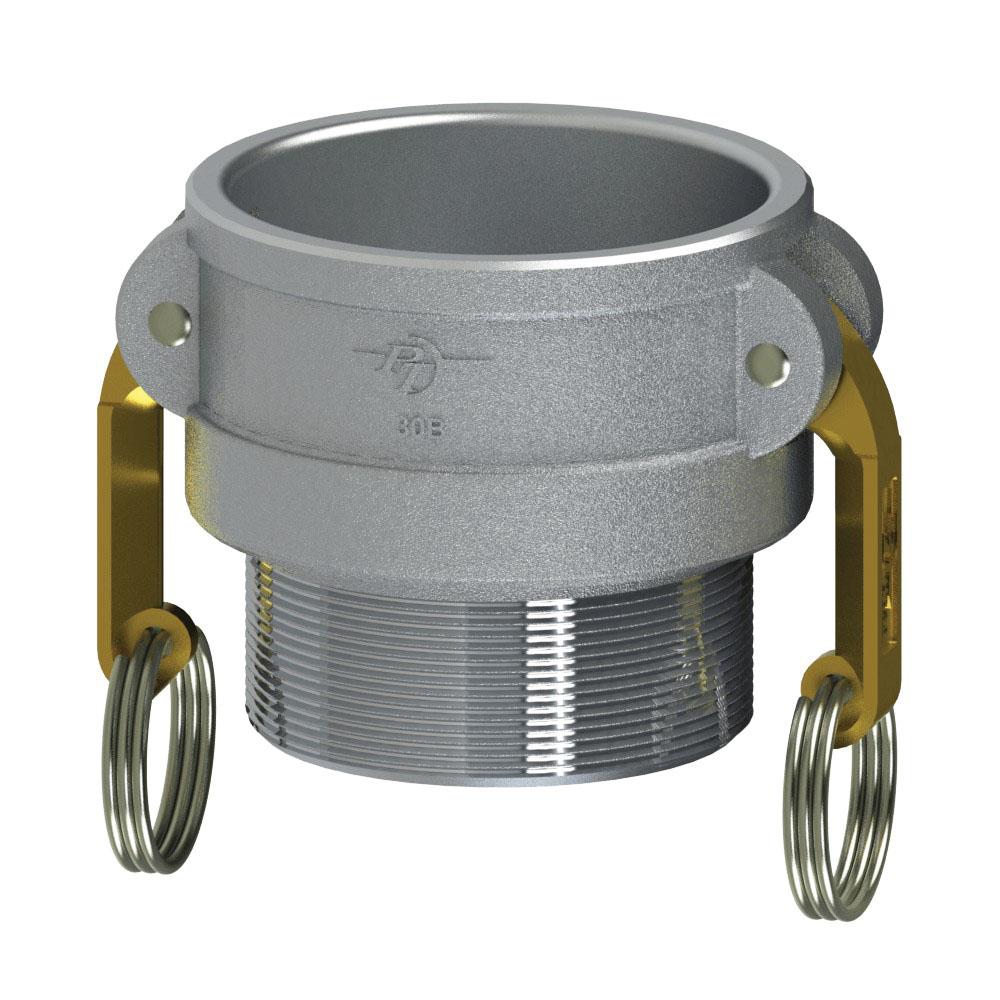

6038000053 (25BFH) by PT-Coupling | Cam & Groove Adapter | Type BFH | 2-1/2" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Aluminum/HB | Buna-N Seal
Buy more, save moreDiscounts applied in cart/checkout.
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Male Fire Hose Thread (NH) Size |
O. D. with Cam Arms Extended (A) |
Overall Length (C) |
Outside Diameter (B) |
Exposed Length (D) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 25BFH | 6038000053 | 2-1/2" | 2-1/2" | 8.03" | 3.63" | 4.43" | 2.18" | 2.38" | 200 PSI |
| 30X25BFH | 6038000055 | 3" | 2-1/2" | 9.56" | 3.82" | 5.46" | 2.27" | 2.88" | 200 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
Additional Product Data:
Shape:
Straight
Cam & Groove Type:
Type B
Ends Configuration:
Material(s):
Seal Material(s):
