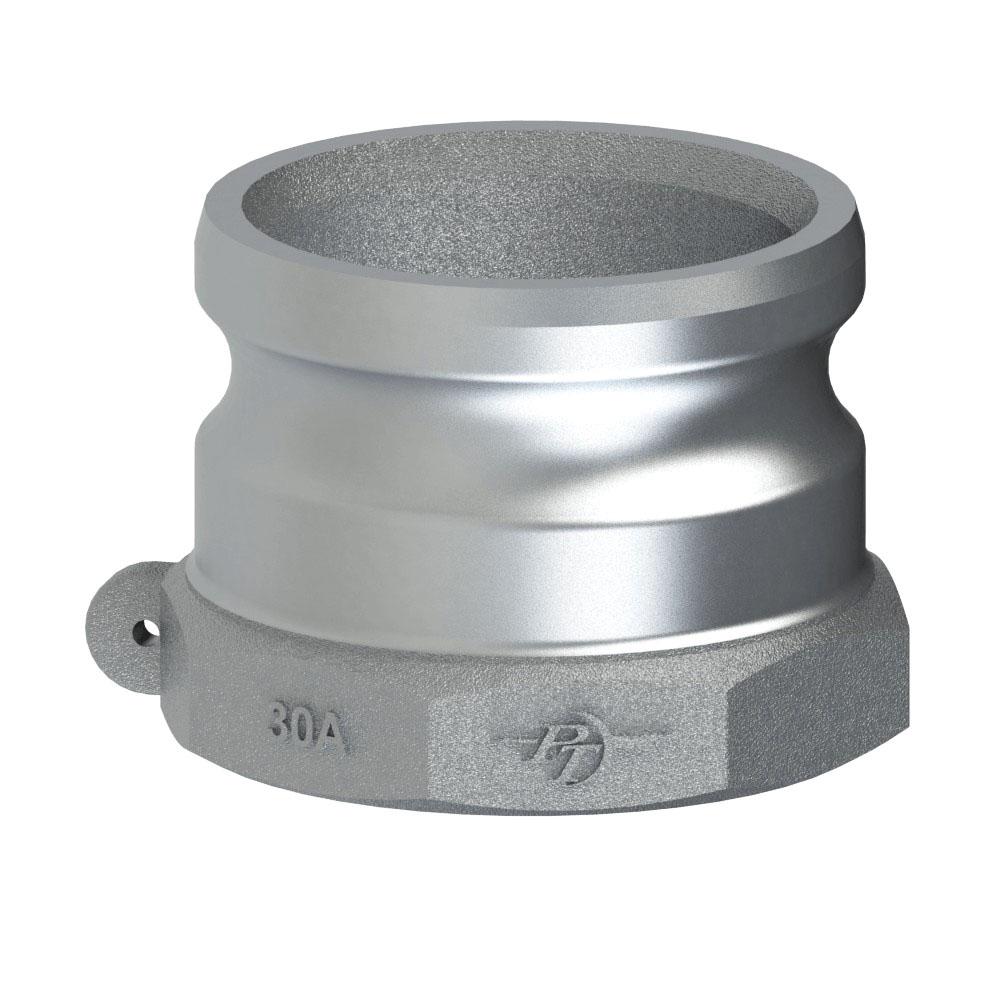

60373025 (30X25AFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type AFH | 3" Adapter x 2-1/2" Female Fire Hose (NH) Thread | Aluminum | EPDM Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type AFH | Adapter x Female Fire Hose (NH) Thread | Aluminum | EPDM Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $73.73 |
| 40–79 | $66.67 |
| 80+ | $58.83 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Female Fire Hose Thread (NH) Size |
Overall Length (C) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 15AFH | 60371500 | 1-1/2" | 1-1/2" | 2.29" | 1.35" | 2.44" | 0.33" | 250 PSI |
| 25AFH | 60372500 | 2-1/2" | 2-1/2" | 2.75" | 2.14" | 3.49" | 0.27" | 200 PSI |
| 30AFH | 60373000 | 3" | 3" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 30X25AFH | 60373025 | 3" | 2-1/2" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 40AFH | 60374000 | 4" | 4" | 3.16" | 3.78" | 5.41" | 0.39" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
