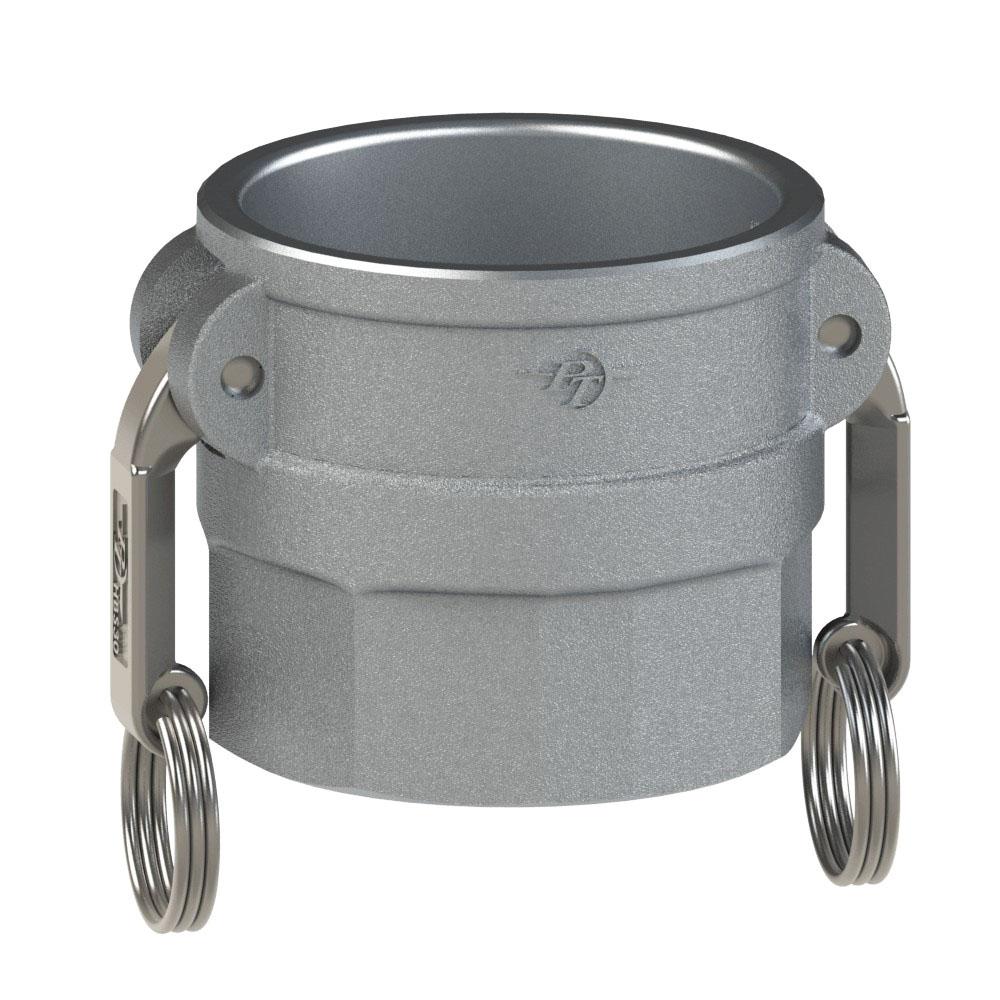

60362500 (25DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 2-1/2" Coupler x 2-1/2" Female NPSH | Aluminum/HBS | Buna Fuel Resistant & Buna-N Seals
PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | Aluminum/HBS | Buna Fuel Resistant & Buna-N Seals
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $70.14 |
| 40–79 | $63.43 |
| 80+ | $55.97 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Female NPSH Thread |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 15DS | 60361500 | 1-1/2" | 1-1/2" | - | - | - | - | 250 PSI |
| 20DS | 60362000 | 2" | 2" | 7.54" | 3.94" | 3.10" | 1.88" | 250 PSI |
| 25DS | 60362500 | 2-1/2" | 2-1/2" | 8.03" | 4.43" | 3.40" | 2.38" | 200 PSI |
| 30DS | 60363000 | 3" | 3" | 9.56" | 5.46" | 3.50" | 2.88" | 200 PSI |
| 40DS | 60364000 | 4" | 4" | 10.66" | 6.56" | 3.90" | 3.60" | 150 PSI |
| 50DS | 60365000 | 5" | 5" | 11.67" | 7.57" | 4.10" | 4.50" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
