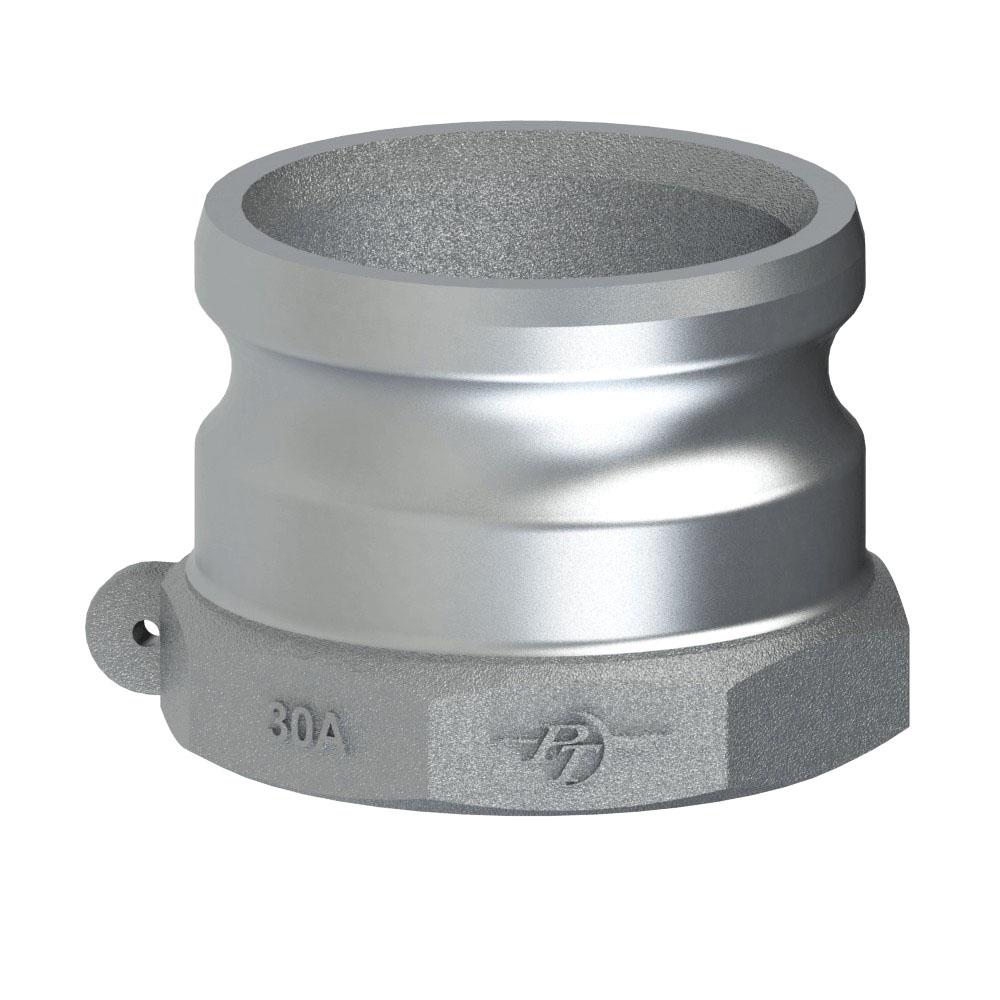

60341000 (10AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 1" Adapter x 1" Female NPSH | Aluminum | Buna Fuel Resistant Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type AS | Adapter x Female NPSH | Aluminum | Buna Fuel Resistant Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $378.87 |
| 15–29 | $342.59 |
| 30+ | $302.29 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
![]() |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Female NPSH Thread |
Overall Length (C) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 10AS | 60341000 | 1" | 1" | - | - | - | - | 250 PSI |
| 15AS | 60341500 | 1-1/2" | 1-1/2" | 2.29" | 1.35" | 2.44" | 0.33" | 250 PSI |
| 20AS | 60342000 | 2" | 2" | 2.54" | 1.72" | 2.92" | 0.31" | 250 PSI |
| 30AS | 60343000 | 3" | 3" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 40AS | 60344000 | 4" | 4" | 3.16" | 3.78" | 5.41" | 0.39" | 150 PSI |
| 50AS | 60345000 | 5" | 5" | 3.22" | 4.79" | 6.49" | 0.35" | 75 PSI |
| 60AS | 60346000 | 6" | 6" | 3.35" | 5.90" | 7.70" | 0.60" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
