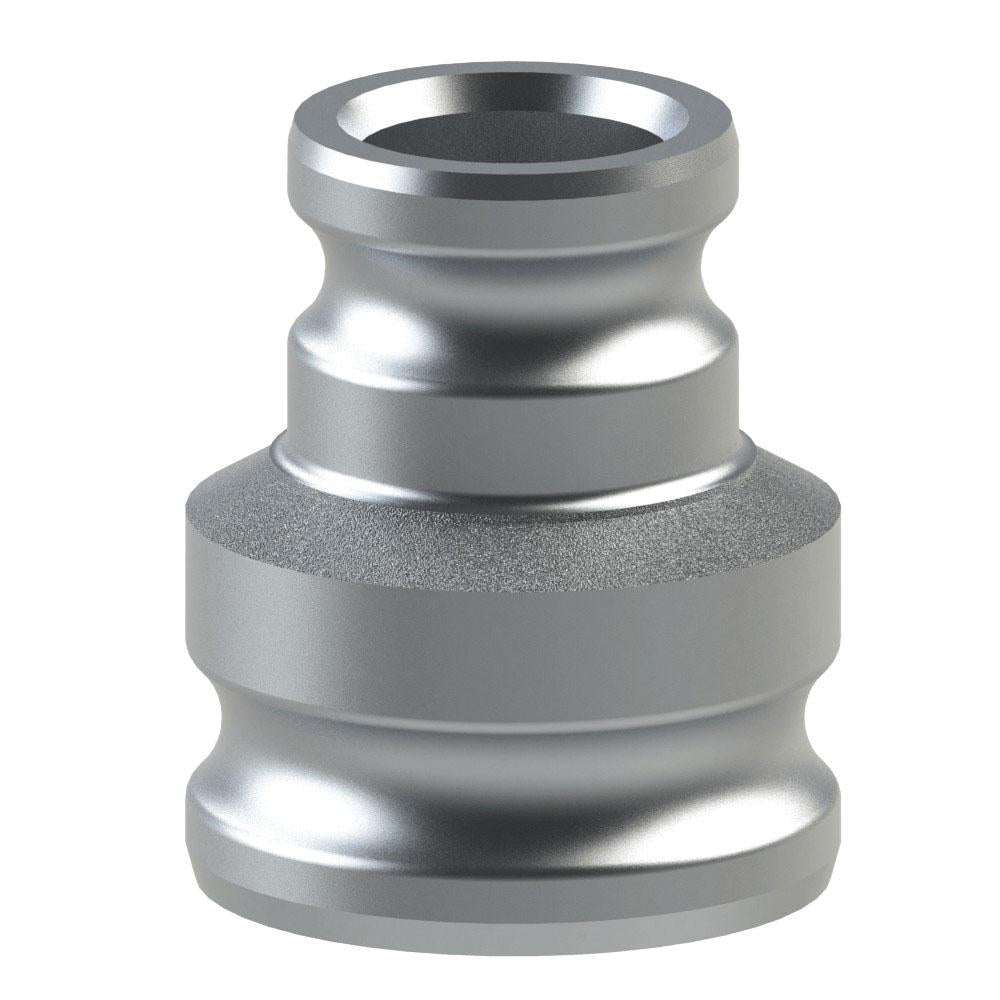

60285040 (SA50X40) by PT-Coupling | Reducing Cam & Groove Adapter | Spool Adapter | Type SA | 5" Adapter x 4" Adapter | Aluminum
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $108.44 |
| 20–59 | $98.06 |
| 60+ | $86.52 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| SA07X07 | 60280707 | 3/4" | 3/4" | 250 PSI |
| SA10X07 | 60281007 | 1" | 3/4" | 250 PSI |
| SA10X10 | 60281010 | 1" | 1" | 250 PSI |
| SA10X15 | 60281015 | 1" | 1-1/2" | 250 PSI |
| SA12X12 | 60281212 | 1-1/4" | 1-1/4" | 250 PSI |
| SA12X15 | 60281215 | 1-1/4" | 1-1/2" | 250 PSI |
| SA15X15 | 60281515 | 1-1/2" | 1-1/2" | 250 PSI |
| SA15X20 | 60281520 | 1-1/2" | 2" | 250 PSI |
| SA15X40 | 60281540 | 1-1/2" | 4" | 150 PSI |
| SA20X20 | 60282020 | 2" | 2" | 250 PSI |
| SA20X25 | 60282025 | 2" | 2-1/2" | 200 PSI |
| SA20X30 | 60282030 | 2" | 3" | 200 PSI |
| SA25X25 | 60282525 | 2-1/2" | 2-1/2" | 200 PSI |
| SA25X30 | 60282530 | 2-1/2" | 3" | 200 PSI |
| SA30X15 | 60283015 | 3" | 1-1/2" | 200 PSI |
| SA30X30 | 60283030 | 3" | 3" | 200 PSI |
| SA30X40 | 60283040 | 3" | 4" | 150 PSI |
| SA40X20 | 60284020 | 4" | 2" | 150 PSI |
| SA40X40 | 60284040 | 4" | 4" | 150 PSI |
| SA50X40 | 60285040 | 5" | 4" | 75 PSI |
| SA50X50 | 60285050 | 5" | 5" | 75 PSI |
| SA60X30 | 60286030 | 6" | 3" | 75 PSI |
| SA60X40 | 60286040 | 6" | 4" | 75 PSI |
| SA60X60 | 60286060 | 6" | 6" | 75 PSI |
** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
