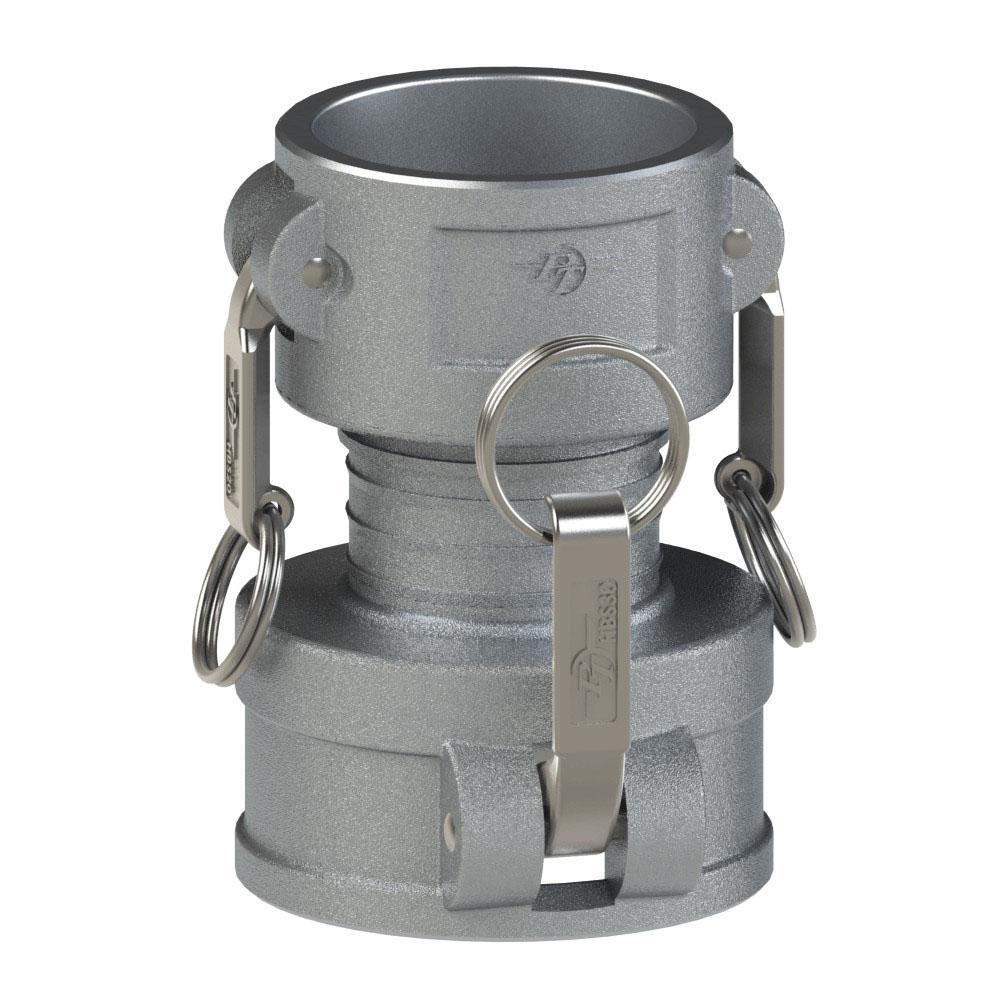

60272020 (20CX20C) by PT-Coupling | Cam & Groove Coupler | Spool Coupler | Type CXC | 2" Coupler x 2" Coupler | Aluminum/HBS | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Coupler | Type CXC | Coupler x Coupler | Aluminum/HBS | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $67.41 |
| 40–79 | $60.95 |
| 80+ | $53.78 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Coupler Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 10CX10C | 60271010 | 1" | 1" | 250 PSI |
| 15CX15C | 60271515 | 1-1/2" | 1-1/2" | 250 PSI |
| 20CX20C | 60272020 | 2" | 2" | 250 PSI |
| 25CX25C | 60272525 | 2-1/2" | 2-1/2" | 200 PSI |
| 30CX20C | 60273020 | 3" | 2" | 200 PSI |
| 30CX30C | 60273030 | 3" | 3" | 200 PSI |
| 40CX30C | 60274030 | 4" | 3" | 150 PSI |
| 40CX40C | 60274040 | 4" | 4" | 150 PSI |
** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
