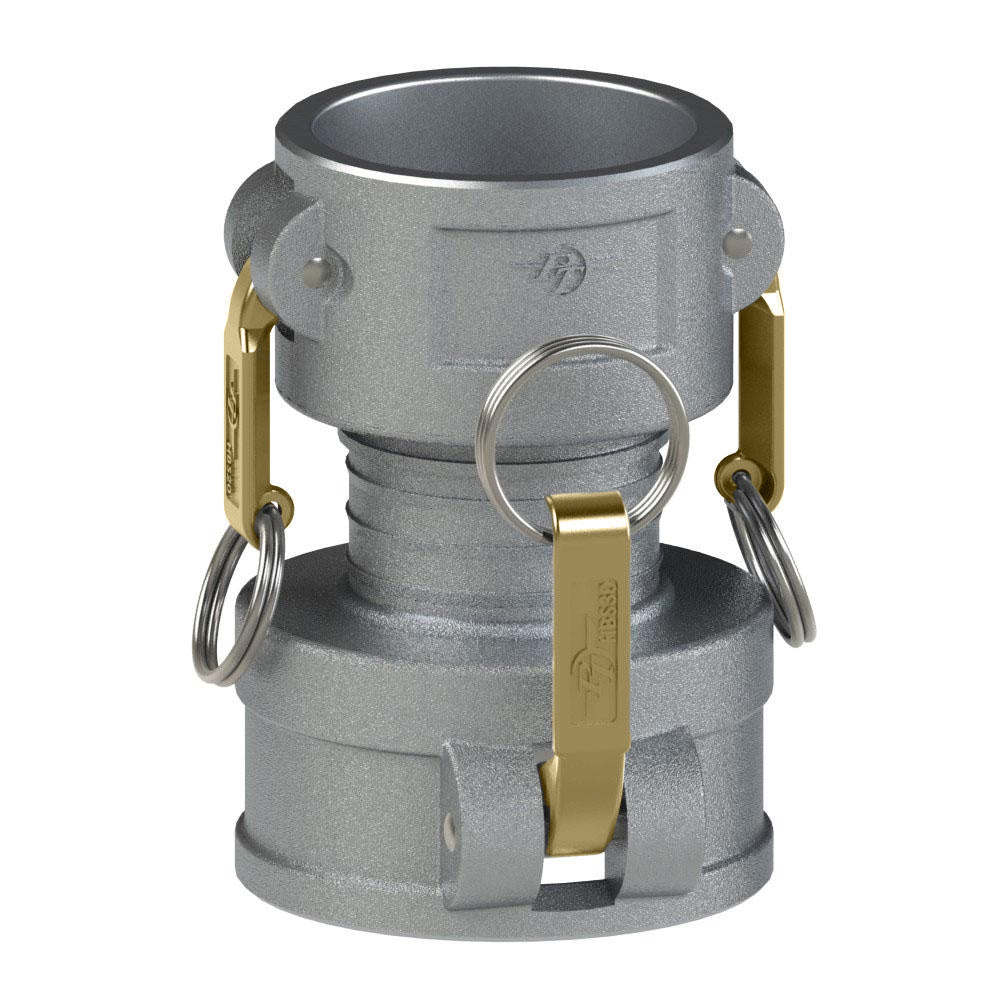

6027000042 (15CX15C) by PT-Coupling | Cam & Groove Coupler | Spool Coupler | Type CXC | 1-1/2" Coupler x 1-1/2" Coupler | Aluminum/HB | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Coupler | Type CXC | Coupler x Coupler | Aluminum/HB | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $69.95 |
| 40–79 | $63.26 |
| 80+ | $55.82 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Coupler Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 10CX10C | 6027000048 | 1" | 1" | 250 PSI |
| 12CX12C | 6027000049 | 1-1/4" | 1-1/4" | 250 PSI |
| 15CX15C | 6027000042 | 1-1/2" | 1-1/2" | 250 PSI |
| 20CX20C | 6027000043 | 2" | 2" | 250 PSI |
| 25CX25C | 6027000050 | 2-1/2" | 2-1/2" | 200 PSI |
| 30CX20C | 6027000044 | 3" | 2" | 200 PSI |
| 30CX30C | 6027000045 | 3" | 3" | 200 PSI |
| 40CX30C | 6027000046 | 4" | 3" | 150 PSI |
| 40CX40C | 6027000047 | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
