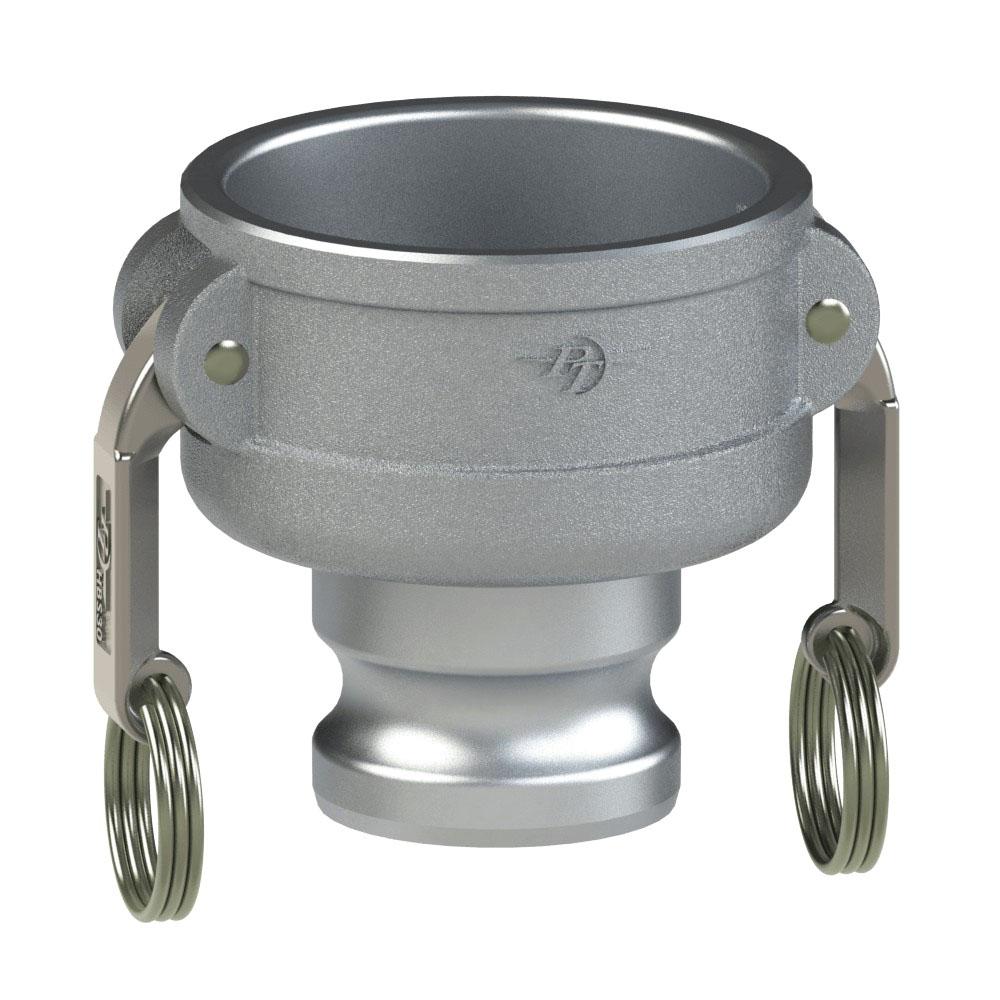

60264030 (40CX30A SHORT) by PT-Coupling | Short Reducing Cam & Groove Coupler | Type CXA | 4" Coupler x 3" Adapter | Aluminum/HBS | Buna-N Seal
Buy more, save moreDiscounts applied in cart/checkout.
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 30CX20A SHORT | 60263020 | 3" | 2" | 200 PSI |
| 40CX20A SHORT | 60264020 | 4" | 2" | 150 PSI |
| 40CX30A SHORT | 60264030 | 4" | 3" | 150 PSI |
| 60CX30A SHORT | 602660301 | 6" | 3" | 75 PSI |
| 60CX40A SHORT | 602660402 | 6" | 4" | 75 PSI |
| 80CX60A SHORT | 60268060** | 8" | 6" | 50 PSI |
** Denotes parts are produced as welded fabrication
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
Additional Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
