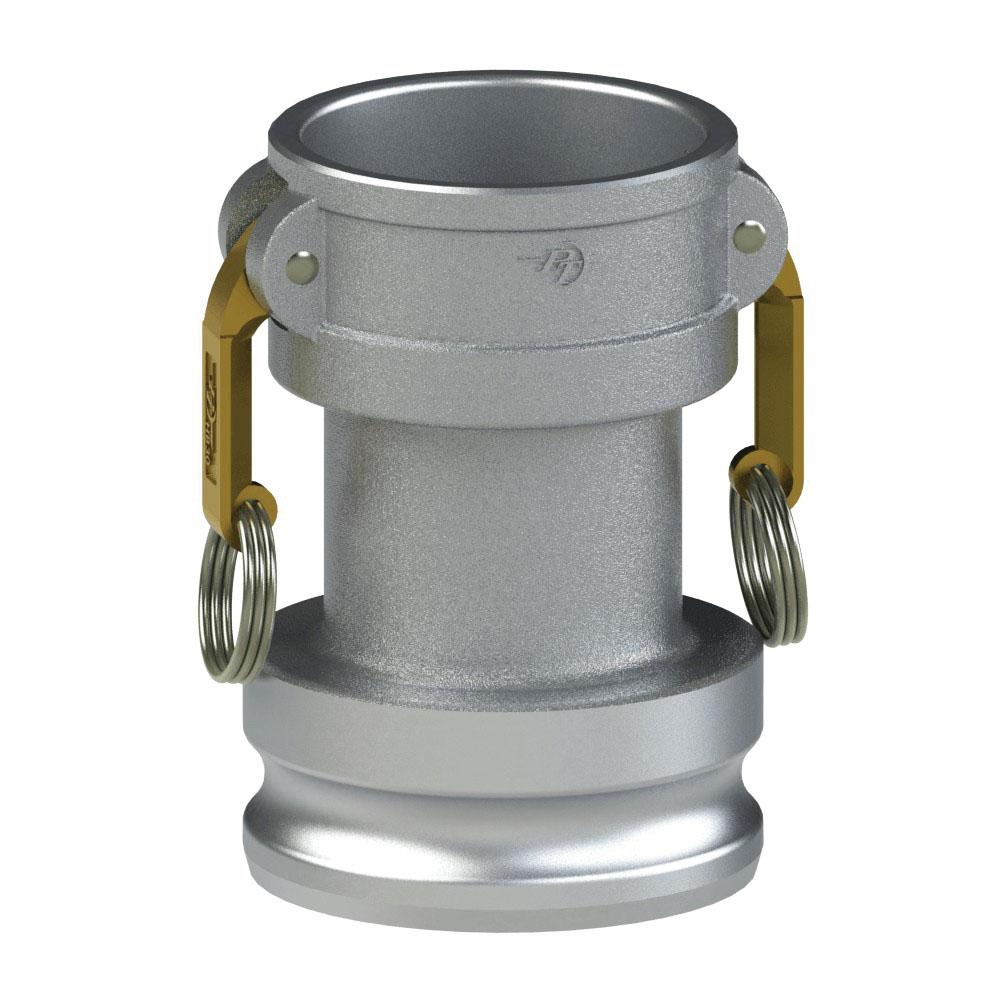

6026000042 (20CX10A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 2" Coupler x 1" Adapter | Aluminum/HB | Buna-N Seal
PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Aluminum/HB | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $67.45 |
| 40–79 | $60.99 |
| 80+ | $53.81 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 10CX15A LONG | 6026000024 | 1" | 1-1/2" | 250 PSI |
| 15CX10A LONG | 6026000025 | 1-1/2" | 1" | 250 PSI |
| 15CX20A LONG | 6026000026 | 1-1/2" | 2" | 250 PSI |
| 20CX10A LONG | 6026000042 | 2" | 1" | 250 PSI |
| 20CX15A LONG | 6026000027 | 2" | 1-1/2" | 250 PSI |
| 20CX30A LONG | 6026000028 | 2" | 3" | 200 PSI |
| 20CX40A LONG | 6026000029 | 2" | 4" | 150 PSI |
| 25CX20A LONG | 6026000030 | 2-1/2" | 2" | 200 PSI |
| 30CX15A LONG | 6026000032 | 3" | 1-1/2" | 200 PSI |
| 30CX25A LONG | 6026000034 | 3" | 2-1/2" | 200 PSI |
| 30CX40A LONG | 6026000035 | 3" | 4" | 150 PSI |
| 40CX25A LONG | 6026000037 | 4" | 2-1/2" | 150 PSI |
| 40CX50A LONG | 6026000039 | 4" | 5" | 75 PSI |
| 40CX60A LONG | 6026000040 | 4" | 6" | 75 PSI |
| 50CX40A LONG | 6026000041 | 5" | 4" | 75 PSI |
** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
