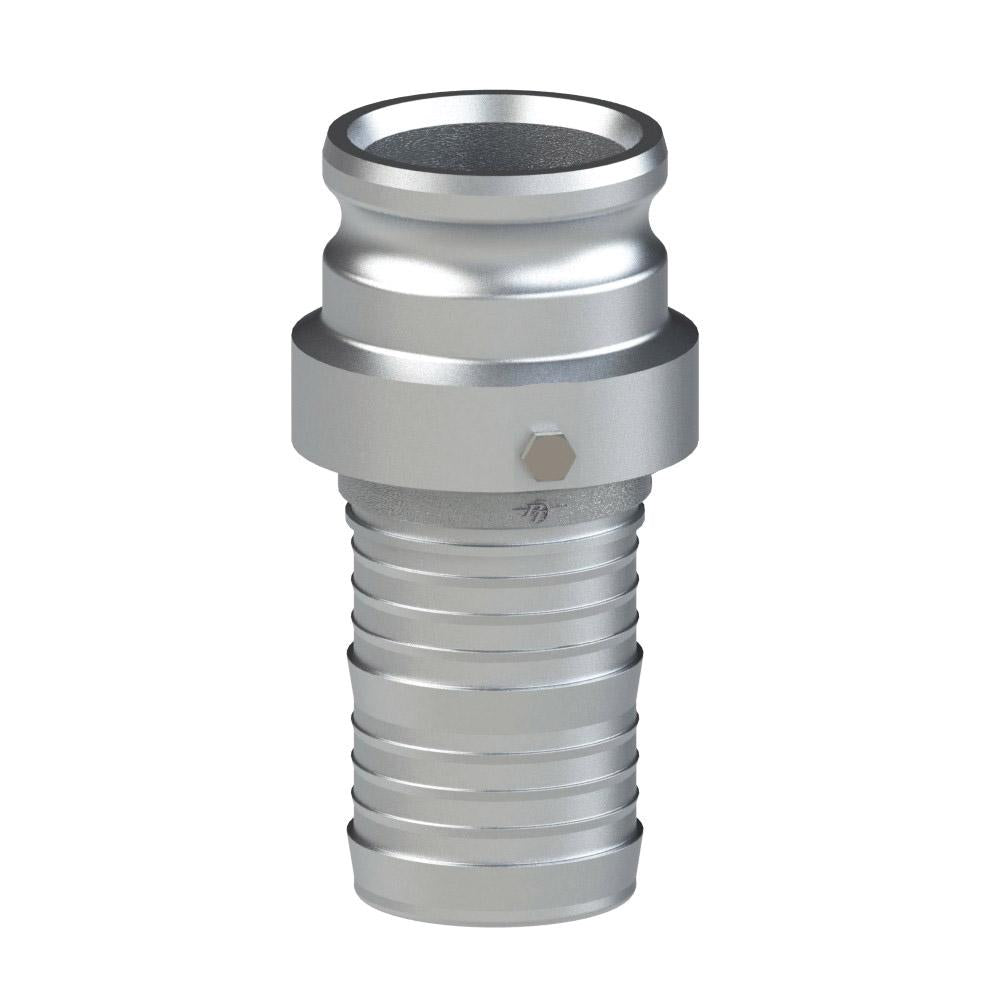

60253000 (30ESV) by PT-Coupling | Swivel Cam & Groove Fitting | Type ESV | 3" Swivel Adapter x 3" Hose Shank | Aluminum | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Fitting | Type ESV | Swivel Adapter x Hose Shank | Aluminum | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $171.31 |
| 20–59 | $154.90 |
| 60+ | $136.68 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type E
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Aluminum Viton® Item # |
Adapter Size |
Hose Shank Size |
Outside Diameter (B) |
Overall Length (C) |
Max. Allowable Working Press. (PSI)* |
|||
| 15ESV | 60251500 | 1-1/2" | 1-1/2" | 2.14" | 5.10" | 250 PSI | |||
| 20ESV | 60252000 | 2" | 2" | 2.64" | 5.75" | 250 PSI | |||
| 30ESV | 60253000 | 3" | 3" | 3.70" | 6.88" | 200 PSI | |||
| 40ESV | 60254000 | 4" | 4" | 4.71" | 7.20" | 150 PSI | |||
| 50ESV | 60255000 | 5" | 5" | 6.56" | 7.56" | 75 PSI | |||
| 60ESV | 60256000 | 6" | 6" | 7.10" | 10.10" | 75 PSI | |||
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
