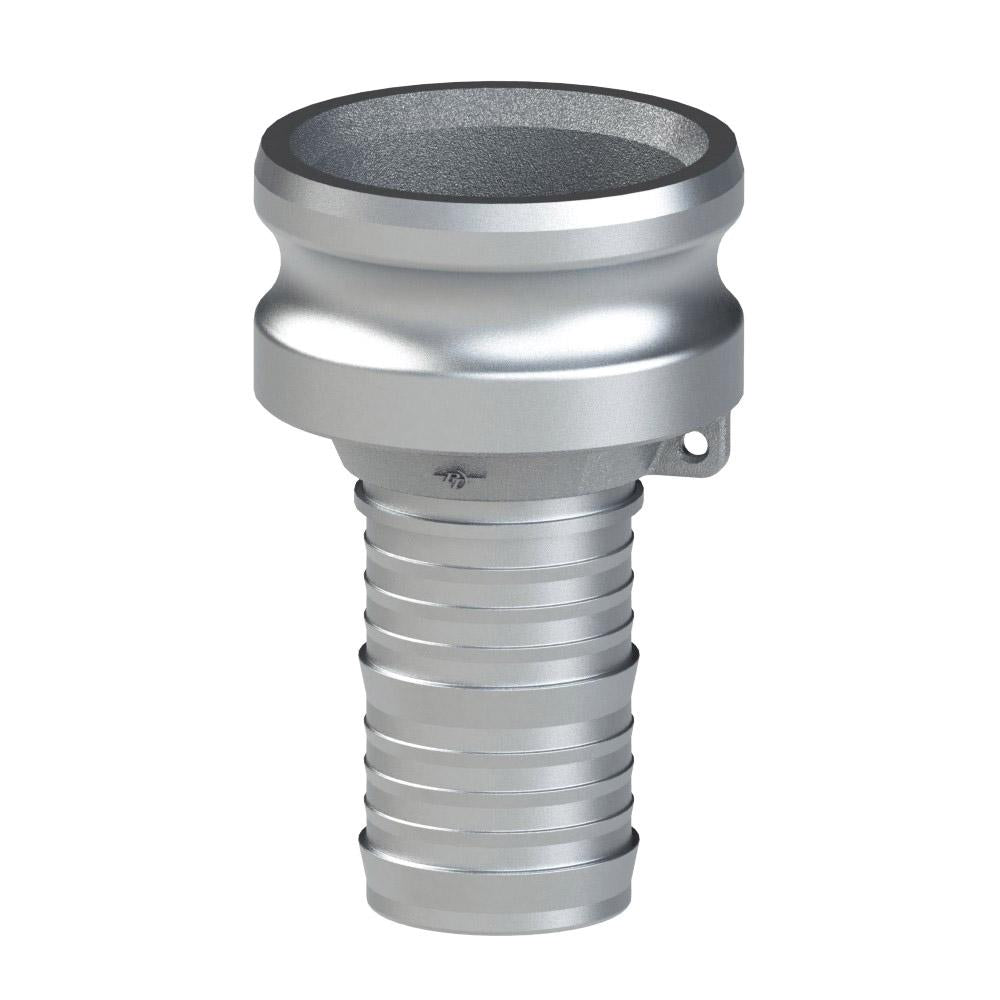

60243025 (30X25E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 3" Adapter x 2-1/2" Hose Shank | Aluminum
PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $70.69 |
| 20–59 | $63.92 |
| 60+ | $56.40 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type E
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Hose Shank Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 10X07E | 60241007 | 1" | 3/4" | 250 PSI |
| 15X10E | 60241510 | 1-1/2" | 1" | 250 PSI |
| 20X15E | 60242015 | 2" | 1-1/2" | 250 PSI |
| 20X25E | 60242025 | 2" | 2-1/2" | 200 PSI |
| 30X20E | 60243020 | 3" | 2" | 200 PSI |
| 30X25E | 60243025 | 3" | 2-1/2" | 200 PSI |
| 40X30E | 60244030 | 4" | 3" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
