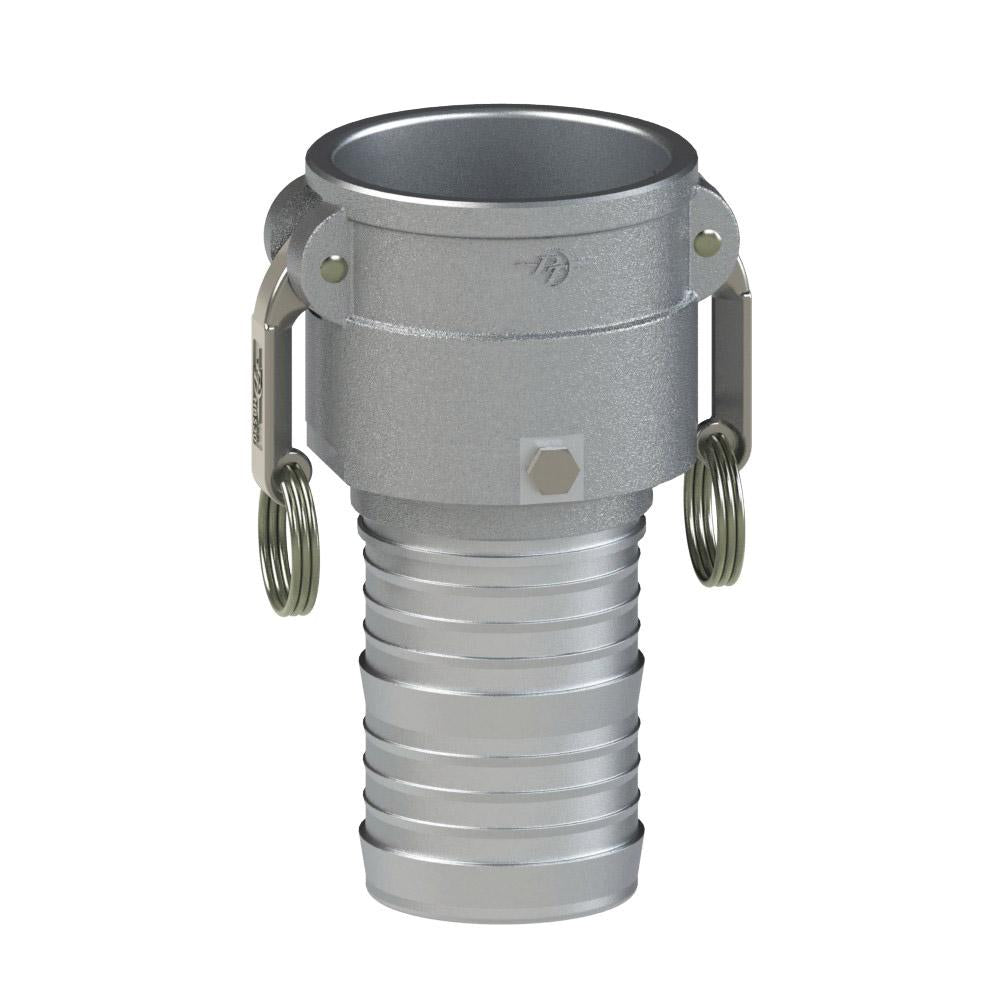

60233000 (30CSV) by PT-Coupling | Swivel Cam & Groove Fitting | Type CSV | 3" Swivel Coupler x 3" Hose Shank | Aluminum | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Fitting | Type CSV | Swivel Coupler x Hose Shank | Aluminum | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $194.96 |
| 20–59 | $176.29 |
| 60+ | $155.55 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Aluminum Viton® Item # |
Coupler Size |
Hose Shank Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Min. Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
|
| 15CSV | 60231500 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 4.82" | 1.88" | 1.22" | 1.15" | 250 PSI | |
| 20CSV | 60232000 | 2" | 2" | 7.54" | 3.94" | 5.53" | 2.15" | 1.71" | 1.60" | 250 PSI | |
| 25CSV | 60232500 | 2-1/2" | 2-1/2" | 8.03" | 4.43" | 5.93" | 2.18" | 2.16" | 2.06" | 200 PSI | |
| 30CSV | 60233000 | 3" | 3" | 9.56" | 5.46" | 6.32" | 2.27" | 2.65" | 2.55" | 200 PSI | |
| 40CSV | 60234000 | 4" | 4" | 10.66" | 6.56" | 6.64" | 2.34" | 3.53" | 3.43" | 150 PSI | |
| 50CSV | 60235000 | 5" | 5" | 11.67" | 7.57" | 7.24" | 2.44" | 4.53" | 4.43" | 75 PSI | |
| 60CSV | 60236000 | 6" | 6" | 16.26" | 10.16" | 9.50" | 2.70" | 5.53" | 5.43" | 75 PSI | |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
