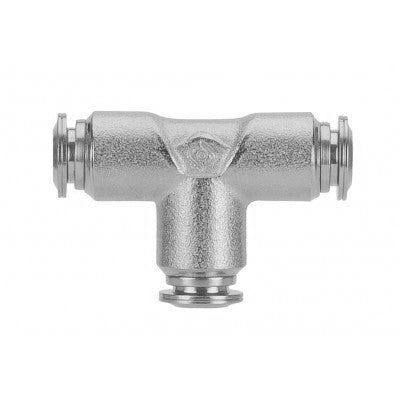

60230-10 by AIGNEP | 60/62 Series | Union | 10mm Tube Push Connect | Tee | FKM Seal | Stainless Steel
60230-10 by AIGNEP | 60/62 Series | Union | 10mm Tube Push Connect | Tee | FKM Seal | Stainless Steel

60230-10 by AIGNEP | 60/62 Series | Union | 10mm Tube Push Connect | Tee | FKM Seal | Stainless Steel

Sale price$50.17
Buy More, Save More!
Quantity Price Each
10–39 $47.16
40–79 $42.64
80+ $37.63
Discounts applied in cart/checkout.

Product Data:

Series:
  • 60/62 Series
Shape:

Tee

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • Some Ends Match

Union Tee Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

Product Number Tube C L1 L2 CH
60230-04 1/4" 12.5 mm 42 mm 21 mm 11 mm
60230-06 3/8" 17.5 mm 52 mm 26 mm 16 mm
60230-08 1/2" 20.5 mm 60.5 mm 30.5 mm 19 mm
60230-6 6 mm 12.5 mm 42 mm 21 mm 11 mm
60230-10 10 mm 17.5 mm 52 mm 26 mm 16 mm
60230-12 12 mm 20.5 mm 60.5 mm 30.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
