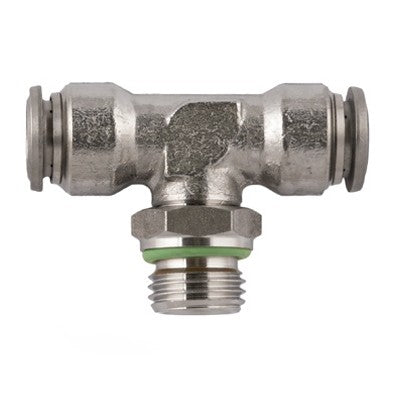

60215-4-M5 by AIGNEP | 60/62 Series | Swivel Branch | 4mm (5/32") Tube Push Connect x M5 Male BSPP | Tee | FKM Seal | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $33.46 |
| 40–79 | $30.26 |
| 80+ | $26.70 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Material(s):
Seal Material(s):
Swivel Branch Tee Stainless - BSPP
Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

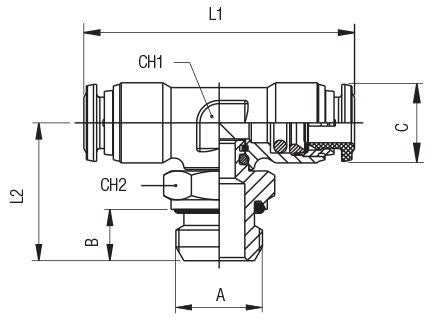

| Product Number | Tube | A | B | C | L1 | L2 | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 60215-4-M5 | 4 mm | M5 | 4 mm | 10 mm | 36 mm | 15 mm | 9 mm | 8 mm |
| 60215-4-1/8 | 4 mm | 1/8" | 6 mm | 10 mm | 36 mm | 18 mm | 9 mm | 13 mm |
| 60215-4-1/4 | 4 mm | 1/4" | 8 mm | 10 mm | 36 mm | 20.5 mm | 9 mm | 15 mm |
| 60215-6-1/8 | 6 mm | 1/8" | 6 mm | 12.5 mm | 42 mm | 19 mm | 11 mm | 13 mm |
| 60215-6-1/4 | 6 mm | 1/4" | 8 mm | 12.5 mm | 42 mm | 21.5 mm | 11 mm | 15 mm |
| 60215-8-1/8 | 8 mm | 1/8" | 6 mm | 14.5 mm | 45 mm | 20 mm | 12 mm | 13 mm |
| 60215-8-1/4 | 8 mm | 1/4" | 8 mm | 14.5 mm | 45 mm | 22 mm | 12 mm | 15 mm |
| 60215-10-1/4 | 10 mm | 1/4" | 8 mm | 17.5 mm | 52 mm | 23.5 mm | 16 mm | 15 mm |
| 60215-10-3/8 | 10 mm | 3/8" | 9 mm | 17.5 mm | 52 mm | 27 mm | 16 mm | 21 mm |
| 60215-10-1/2 | 10 mm | 1/2" | 10 mm | 17.5 mm | 52 mm | 29.5 mm | 16 mm | 22 mm |
| 60215-12-3/8 | 12 mm | 3/8" | 9 mm | 20.5 mm | 61 mm | 29 mm | 19 mm | 21 mm |
| 60215-12-1/2 | 12 mm | 1/2" | 10 mm | 20.5 mm | 61 mm | 31.5 mm | 19 mm | 22 mm |
