60211X-6-1/4 by AIGNEP | 60/62 Series | Swivel Branch | 6mm Tube x 1/4" Swift-Fit Male | Tee | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.86 |
| 40–79 | $35.14 |
| 80+ | $31.01 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Swivel Branch Tee Stainless - X Series
Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

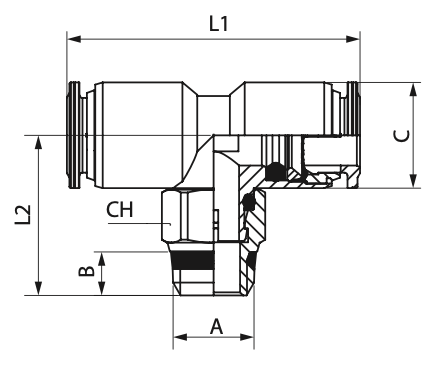

| Product Number | Tube | A | B | C | L1 | L2 | CH |
|---|---|---|---|---|---|---|---|
| 60211x-6-1/8 | 6 mm | 1/8" | 5.5 mm | 12.5 mm | 36 mm | 17 mm | 11 mm |
| 60211x-6-1/4 | 6 mm | 1/4" | 7 mm | 12.5 mm | 36 mm | 19 mm | 15 mm |
| 60211x-10-1/4 | 10 mm | 1/4" | 7 mm | 17 mm | 47 mm | 25.5 mm | 15 mm |
| 60211x-10-3/8 | 10 mm | 3/8" | 7.5 mm | 17 mm | 47 mm | 23.5 mm | 17 mm |
| 60211x-10-1/2 | 10 mm | 1/2" | 9 mm | 17 mm | 47 mm | 27 mm | 21 mm |
| 60211x-12-3/8 | 12 mm | 3/8" | 7.5 mm | 20.5 mm | 55 mm | 26 mm | 17 mm |
| 60211x-12-1/2 | 12 mm | 1/2" | 9 mm | 20.5 mm | 55 mm | 27 mm | 21 mm |
