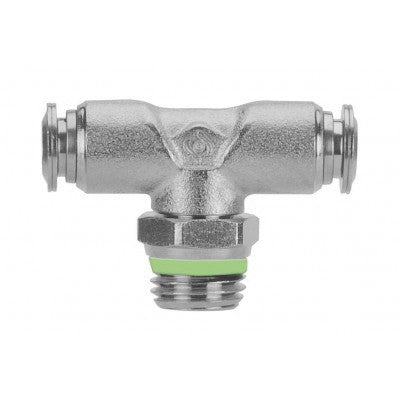

60210-53-04 by AIGNEP | 60/62 Series | Swivel Branch | 5/32" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | Tee | FKM Seal | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.08 |
| 40–79 | $33.53 |
| 80+ | $29.59 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Swivel Branch Tee Stainless
Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT
| Product Number | Tube | A | B (IN) | B | L1 | L2 | CH1 | CH2 | D | |
|---|---|---|---|---|---|---|---|---|---|---|
| 60210-53-32 | 5/32" | 10-32 | 0.157" | 4 mm | 36 mm | 16 mm | 9 mm | 8 mm | 10 mm | |
| 60210-53-02 | 5/32" | 1/8" | 0.216" | 5.5 mm | 36 mm | 17.5 mm | 9 mm | 13 mm | 10 mm | |
| 60210-53-04 | 5/32" | 1/4" | 0.275" | 7 mm | 36 mm | 19 mm | 9 mm | 15 mm | 10 mm | |
| 60210-04-02 | 1/4" | 1/8" | 0.216" | 5.5 mm | 42 mm | 19 mm | 11 mm | 13 mm | 12.5 mm | |
| 60210-04-04 | 1/4" | 1/4" | 0.275" | 7 mm | 42 mm | 20.5 mm | 11 mm | 15 mm | 12.5 mm | |
| 60210-05-02 | 5/16" | 1/8" | 0.216" | 5.5 mm | 45 mm | 21.5 mm | 12 mm | 13 mm | 14.5 mm | |
| 60210-05-04 | 5/16" | 1/4" | 0.275" | 7 mm | 45 mm | 21.5 mm | 12 mm | 15 mm | 14.5 mm | |
| 60210-06-04 | 3/8" | 1/4" | 0.275" | 7 mm | 52 mm | 26 mm | 16 mm | 16 mm | 17.5 mm | |
| 60210-06-06 | 3/8" | 3/8" | 0.295" | 7.5 mm | 52 mm | 24 mm | 16 mm | 17 mm | 17.5 mm | |
| 60210-06-08 | 3/8" | 1/2" | 0.354" | 9 mm | 52 mm | 24 mm | 16 mm | 21 mm | 17.5 mm | |
| 60210-08-06 | 1/2" | 3/8" | 0.295" | 7.5 mm | 60.5 mm | 25.5 mm | 19 mm | 20 mm | 20.5 mm | |
| 60210-08-08 | 1/2" | 1/2" | 0.354" | 9 mm | 60.5 mm | 28 mm | 19 mm | 21 mm | 20.5 mm |
