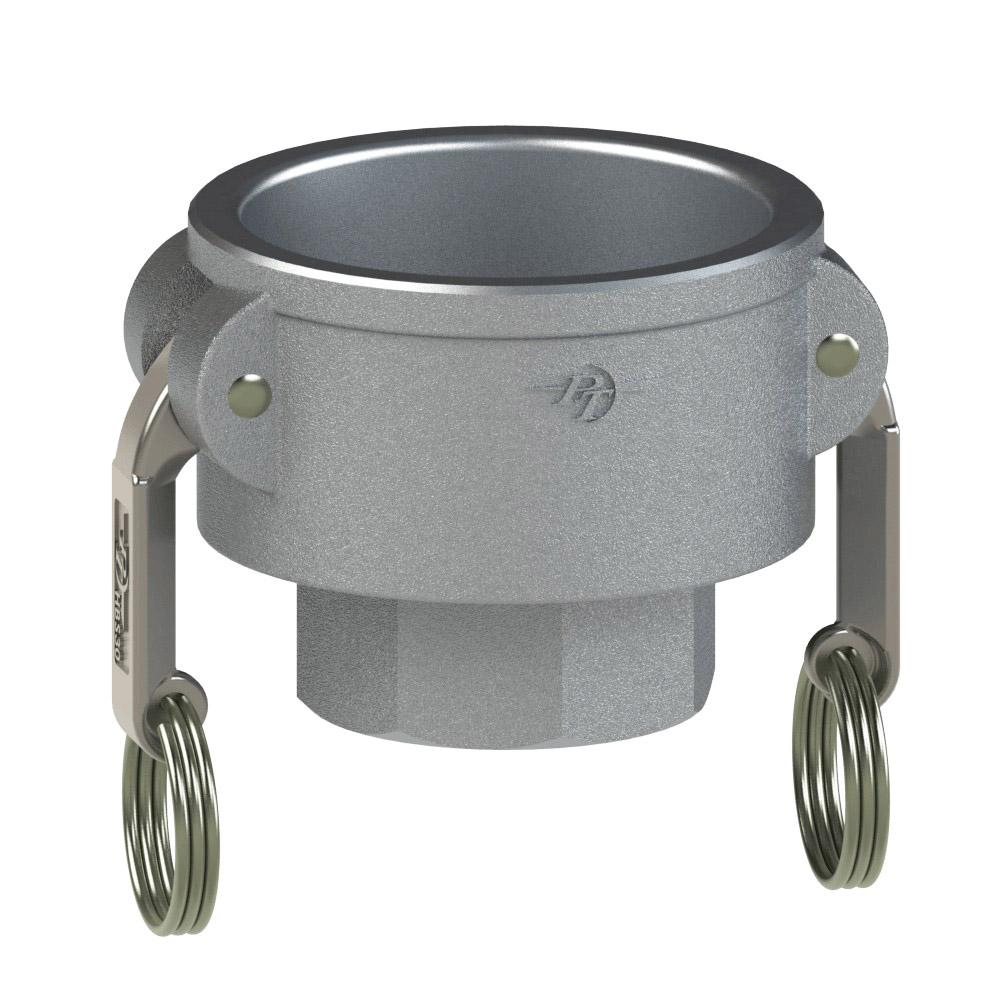

60203025 (30X25D) by PT-Coupling | Reducing Cam & Groove Coupler | Type D | 3" Coupler x 2-1/2" Female NPT | Aluminum/HBS | Buna-N Seal
PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Aluminum/HBS | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $94.46 |
| 20–59 | $85.42 |
| 60+ | $75.37 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Female NPT Thread |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15X10D | 60201510 | 1-1/2" | 1" | 250 PSI |
| 20X10D | 60202010** | 2" | 1" | 250 PSI |
| 20X15D | 60202015 | 2" | 1-1/2" | 250 PSI |
| 25X10D | 60202510 | 2-1/2" | 1" | 200 PSI |
| 25X20D | 60202520 | 2-1/2" | 2" | 200 PSI |
| 30X20D | 60203020 | 3" | 2" | 200 PSI |
| 30X25D | 60203025 | 3" | 2-1/2" | 200 PSI |
| 40X30D | 60204030 | 4" | 3" | 150 PSI |
** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
