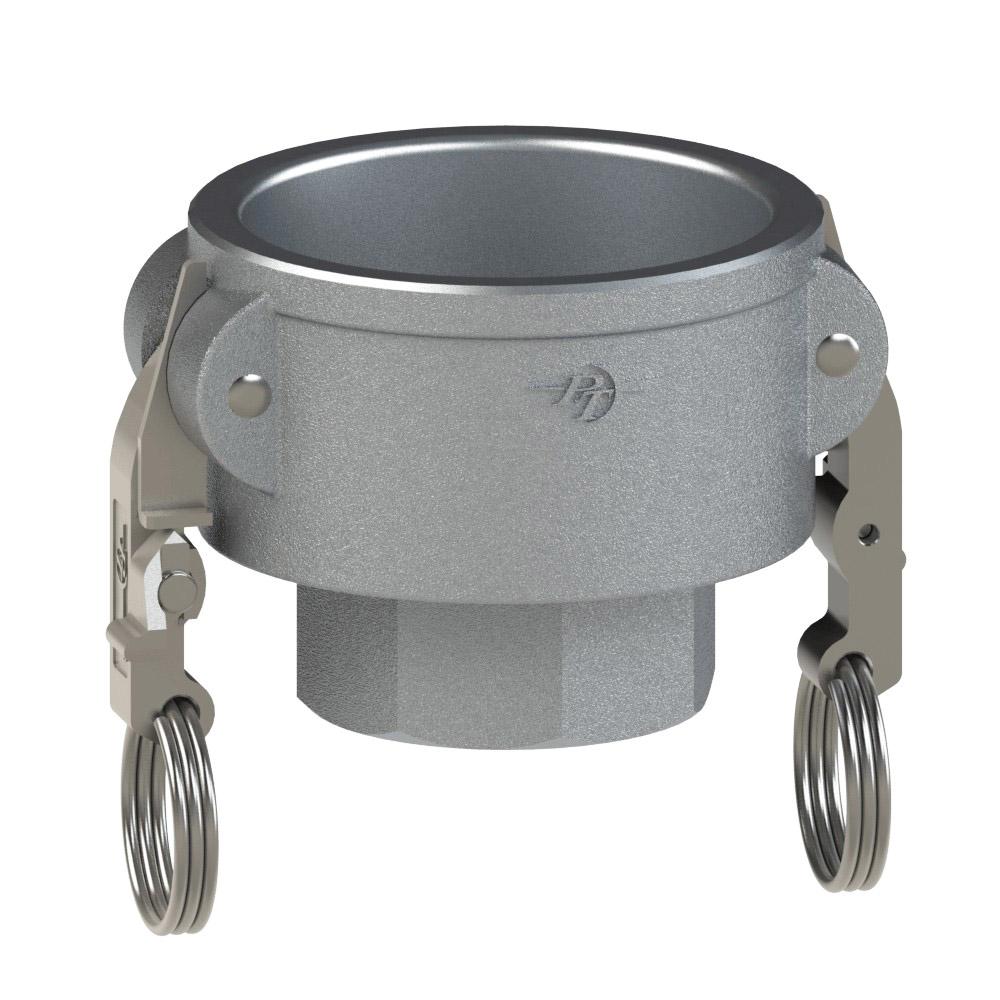

60202015L2 (20X15D SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type D | 2" Coupler x 1-1/2" Female NPT | Aluminum | Buna-N Seal

60202015L2 (20X15D SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type D | 2" Coupler x 1-1/2" Female NPT | Aluminum | Buna-N Seal

Sale price$77.74

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $73.08
20–59 $66.08
60+ $58.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • STA-LOK II
Shape:

Straight

Cam & Groove Type:

Type D
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
15X10D SLII 60201510L2 1-1/2" 1" 250 PSI
20X10D SLII 60202010L2** 2" 1" 250 PSI
20X15D SLII 60202015L2 2" 1-1/2" 250 PSI
30X10D SLII 60203010L2** 3" 1" 200 PSI
30X20D SLII 60203020L2 3" 2" 200 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
