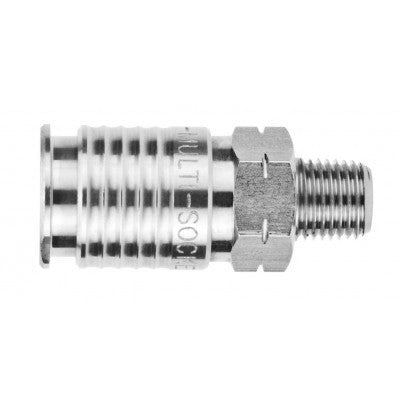

60191-04 by AIGNEP | QC Series | 1/4" Multisocket x 1/4" Male NPTF | Stainless Steel
60191-04 by AIGNEP | QC Series | 1/4" Multisocket x 1/4" Male NPTF | Stainless Steel

60191-04 by AIGNEP | QC Series | 1/4" Multisocket x 1/4" Male NPTF | Stainless Steel

Sale price$58.84
Buy More, Save More!
Quantity Price Each
10–39 $55.31
40–79 $50.01
80+ $44.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 1/4in AIGNEP Multisocket QD Interchange
  • 1/4in Male NPTF

1/4" Male NPTF 316L (STAINLESS)

Temperature Range: 5 ?- 392 ? F
Media: Compressed Air
Body: Stainless Steel
Thread Type: NPTF

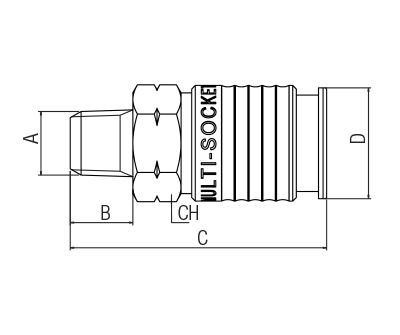

Product Number Seal Thread Type A B (IN) B CH C D
60191-04 FKM NPTF 1/4" 0.511" 13 mm 21 mm 53 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
