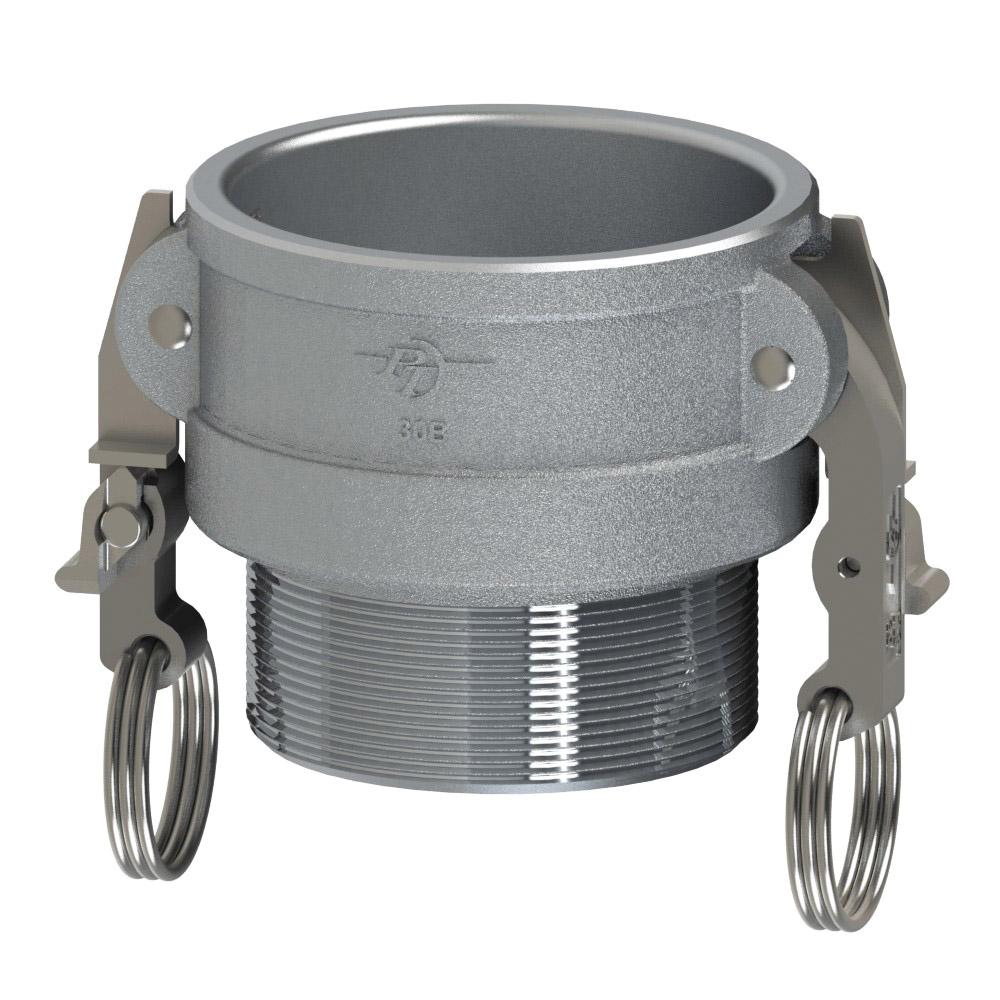

60184030L2 (40X30B SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type B | 4" Coupler x 3" Male NPT | Aluminum | Buna-N Seal

60184030L2 (40X30B SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type B | 4" Coupler x 3" Male NPT | Aluminum | Buna-N Seal

Sale price$166.66
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Male NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
20X15B SLII 60182015L2 2" 1-1/2" 250 PSI
40X30B SLII 60184030L2 4" 3" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Series:
  • STA-LOK II
Shape:

Straight

Cam & Groove Type:

Type B

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
