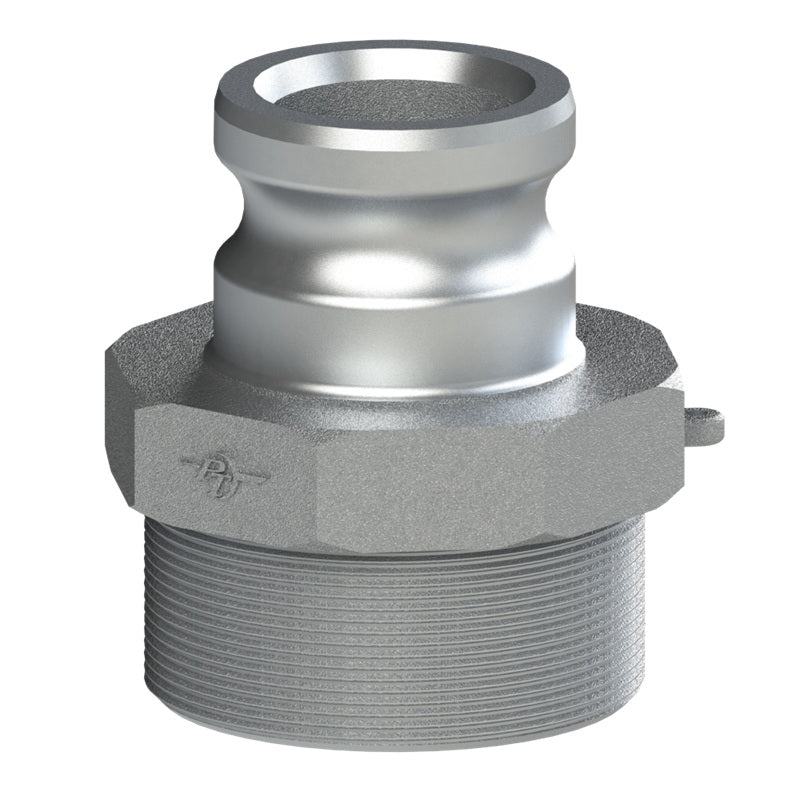

60161020 (10X20F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 1" Adapter x 2" Male NPT | Aluminum
PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $40.86 |
| 40–79 | $36.95 |
| 80+ | $32.60 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type F
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Male NPT Thread |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 10X15F | 60161015 | 1" | 1-1/2" | 250 PSI |
| 10X20F | 60161020 | 1" | 2" | 250 PSI |
| 12X15F | 60161215 | 1-1/4" | 1-1/2" | 250 PSI |
| 15X10F | 60161510 | 1-1/2" | 1" | 250 PSI |
| 15X20F | 60161520 | 1-1/2" | 2" | 250 PSI |
| 20X15F | 60162015 | 2" | 1-1/2" | 250 PSI |
| 20X25F | 60162025 | 2" | 2-1/2" | 200 PSI |
| 20X30F | 60162030 | 2" | 3" | 200 PSI |
| 25X30F | 60162530 | 2-1/2" | 3" | 200 PSI |
| 30X15F | 60163015 | 3" | 1-1/2" | 200 PSI |
| 30X20F | 60163020 | 3" | 2" | 200 PSI |
| 30X25F | 60163025 | 3" | 2-1/2" | 200 PSI |
| 30X40F | 60163040 | 3" | 4" | 150 PSI |
| 40X20F | 60164020 | 4" | 2" | 150 PSI |
| 40X25F | 60164025 | 4" | 2-1/2" | 150 PSI |
| 40X30F | 60164030 | 4" | 3" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
