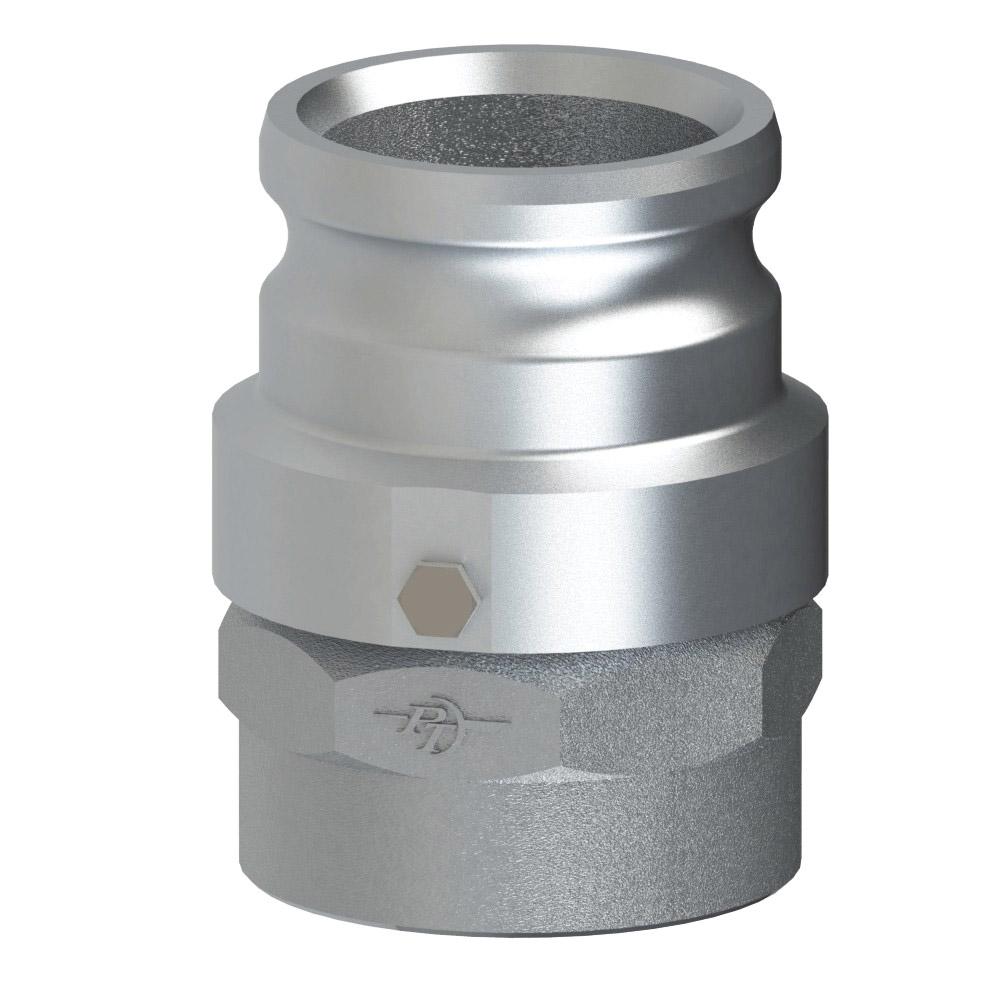

60153000 (30ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type ASV | 3" Swivel Adapter x 3" Female NPT | Aluminum | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type ASV | Swivel Adapter x Female NPT | Aluminum | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $176.54 |
| 20–59 | $159.64 |
| 60+ | $140.86 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Aluminum Viton® Item # |
Aluminum Buna Item # |
Adapter Size |
Female NPT Thread Size |
Overall Length (C) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 15ASV | 60151500 | - | 1-1/2" | 1-1/2" | 2.29" | 1.35" | 2.44" | 0.33" | 250 PSI |
| 20ASV | 60152000 | - | 2" | 2" | 2.54" | 1.72" | 2.92" | 0.31" | 250 PSI |
| 25ASV | - | 60152500 | 2-1/2" | 2-1/2" | 2.75" | 2.14" | 3.49" | 0.27" | 200 PSI |
| 30ASV | 60153000 | 60153100 | 3" | 3" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 40ASV | 60154000 | 60154100 | 4" | 4" | 3.16" | 3.78" | 5.41" | 0.39" | 150 PSI |
| 50ASV | 60155000 | - | 5" | 5" | 3.22" | 4.79" | 6.49" | 0.35" | 75 PSI |
| 60ASV | 60156000 | - | 6" | 6" | 3.35" | 5.90" | 7.70" | 0.60" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
